Description

StarTech.com 4K HDMI 2-Port Video Splitter – 1x2 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz, HDMI, 4096 x 2160 pixels, Black, Aluminium, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA), 720p, 1080p, 2160p

Split an HDMI audio/video source on two separate HDMI Displays simultaneously, with support for resolutions up to 4K

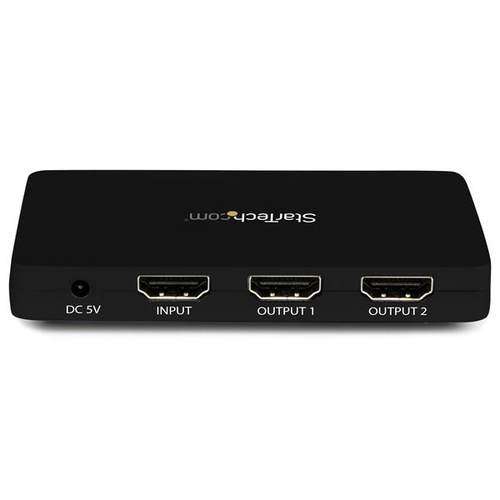

The ST122HD4K 2-port 4K HDMI splitter lets you share two HDMI displays or projectors with an HDMI-enabled audio / video source device, such as a computer, Blu-ray player or cable TV set-top box.

With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST122HD4K ensures you'll be ready to take advantage of tomorrow's display technology.

Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.

Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.

The ST122HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.ST122HD4K
Our part no.V933222
EAN0065030858489
CategoryCables & Adapters › HDMI Cables & Extenders
Weight0.4 kg
Ports & interfaces
Video port typeHDMI
HDMI version1.4
Video ports quantity2
DC-in jackYes
Features
Product colourBlack
Housing materialAluminium
Maximum resolution4096 x 2160 pixels
Full HDYes
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 2560 x 1600 (WQXGA)
Supported video modes720p, 1080p, 2160p

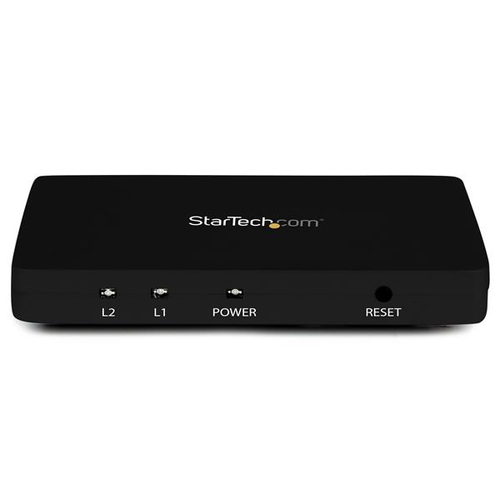

LED indicatorsActivity, Power
CertificationCE, FCC, RoHS
Power
AC input voltage100-240 V
Input current0.35 A
Output voltage5 V
Output current2 A
Weight & dimensions
Dimensions (WxDxH)60 x 100 x 14 mm
Weight176 g
Packaging data
Package width148 mm
Package depth216 mm
Package height53 mm
Package weight430 g

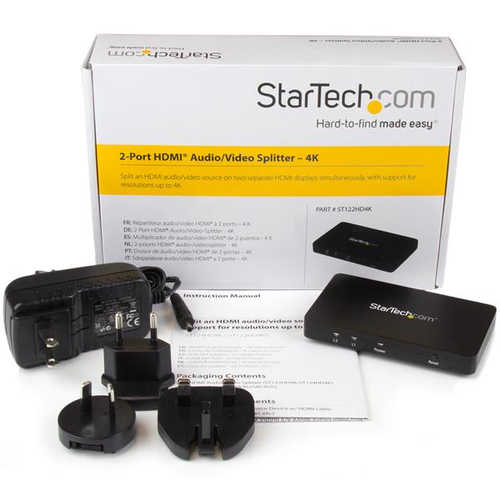

Packaging content
ManualYes
AC adapter includedYes
Technical details
Audio supportYes
Supported audio channels7.1
Logistics data
Harmonized System (HS) code85176990
