Description

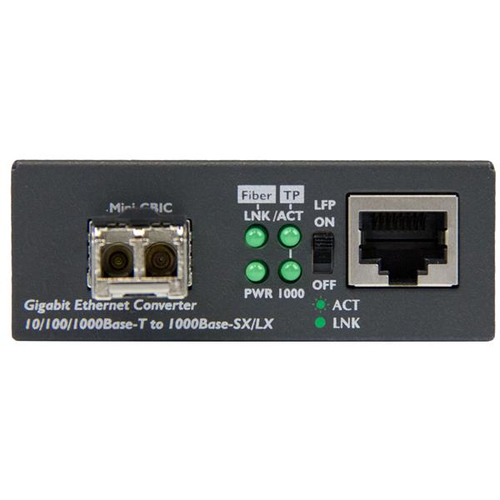

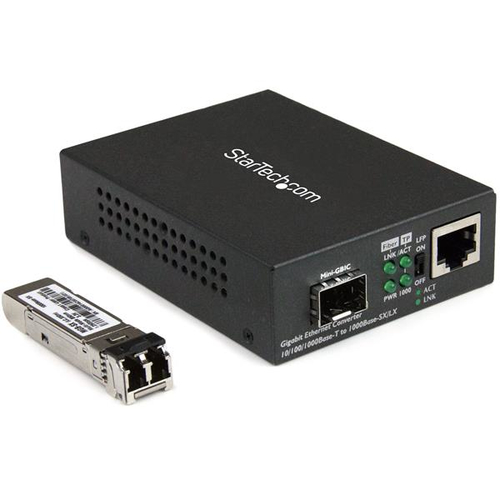

StarTech.com Multi-Mode (MM) LC Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to LC Converter, SFP Transceiver Included, 850nm, 550m - TAA, 1000 Mbit/s, 1000Base-T, 100Base-TX, 10Base-T, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

Specifications

BrandSTARTECH
Manufacturer part no.MCM1110MMLC
Our part no.V933522
EAN0065030861465
CategoryNetworking › Transceivers & SFPs
Weight0.5 kg
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface1000Base-T, 100Base-TX, 10Base-T
Converter output interface1000Base-LX, 1000Base-SX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Data transfer rate1000 Mbit/s
Jumbo frames supportYes
Auto MDI/MDI-XYes
Duplex systemFull
Performance
Maximum transfer distance550 m
Wavelength850 nm
Wavelength-division multiplexing (WDM)No
Fiber mode structureMulti-mode
Mean time between failures (MTBF)50000 h
Features
InternalNo
LED indicatorsActivity, Link, Power
Product colourBlack
Housing materialSteel
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorLC

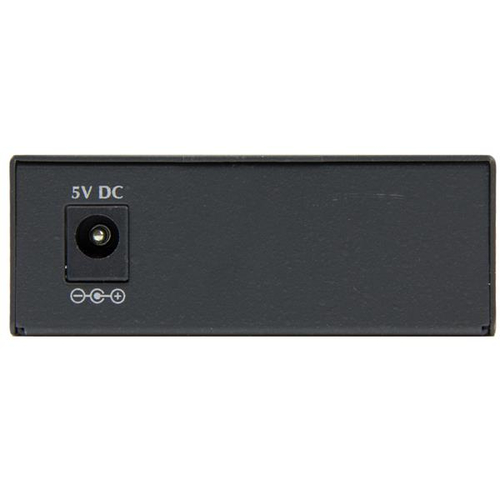

DC-in jackYes
Power
Input voltage100 - 240 V
Input current1 A
Output voltage5 V
Output current2 A
Power over Ethernet (PoE)No
External power adapterYes
Power plug typeType N
Weight & dimensions
Width70 mm
Depth94 mm
Height26 mm
Weight201 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 95%
Packaging content
ManualYes
Packaging data
Package width286 mm
Package depth138 mm
Package height69 mm
Package weight556 g
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, REACH, TAA
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width588 mm
Master (outer) case length369 mm
Master (outer) case height313 mm
Products per master (outer) case20 pc(s)
