Description

StarTech.com Multi-Mode (MM) / Single Mode (SM) Fiber Media Converter for 10/100/1000 Networks, Standalone Gigabit Ethernet to Fiber Converter, Open SFP Slot - TAA, 1000 Mbit/s, 1000Base-T, 100Base-TX, 10Base-T, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Gigabit Ethernet, 10,100,1000 Mbit/s

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

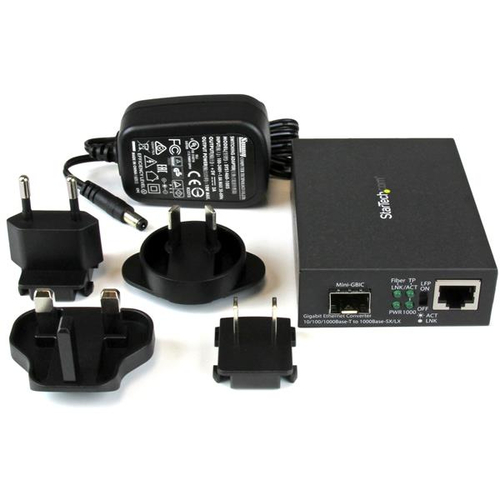

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

Specifications

BrandSTARTECH
Manufacturer part no.MCM1110SFP
Our part no.V933523
EAN0065030861472
CategoryNetworking › Transceivers & SFPs
Weight0.5 kg
Network
Maximum data transfer rate1000 Mbit/s
Converter input interface1000Base-T, 100Base-TX, 10Base-T
Converter output interface1000Base-LX, 1000Base-SX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface typeGigabit Ethernet
Ethernet LAN data rates10,100,1000 Mbit/s
Jumbo frames supportYes
Auto MDI/MDI-XYes
Duplex systemFull
Performance
Wavelength-division multiplexing (WDM)Yes
Fiber mode structureMulti-mode, Single-mode
Mean time between failures (MTBF)50000 h
Features
InternalNo

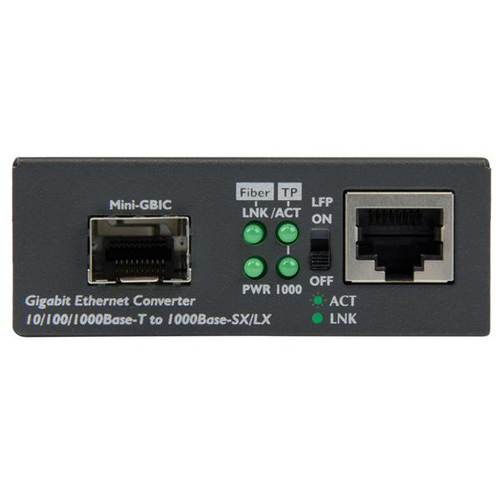

LED indicatorsActivity, Link, Power
Product colourBlack
Housing materialSteel
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Fiber ports quantity1
Fiber optic connectorSFP

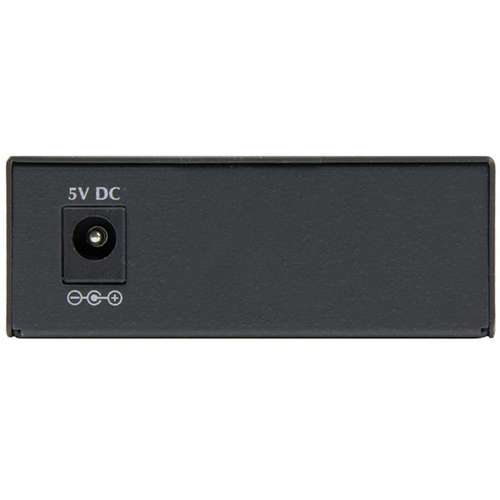

DC-in jackYes
Power
Input voltage100 - 240 V
Input current1 A
Output voltage5 V
Output current2 A
Power consumption (typical)5 W
Power over Ethernet (PoE)No
External power adapterYes
Power plug typeType N
Weight & dimensions
Width70 mm
Depth95 mm
Height26 mm
Weight185 g
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 95%
Packaging content
ManualYes
Packaging data
Package width285 mm
Package depth139 mm
Package height69 mm
Package weight544 g
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width590 mm
Master (outer) case length370 mm
Master (outer) case height311 mm
Products per master (outer) case20 pc(s)
