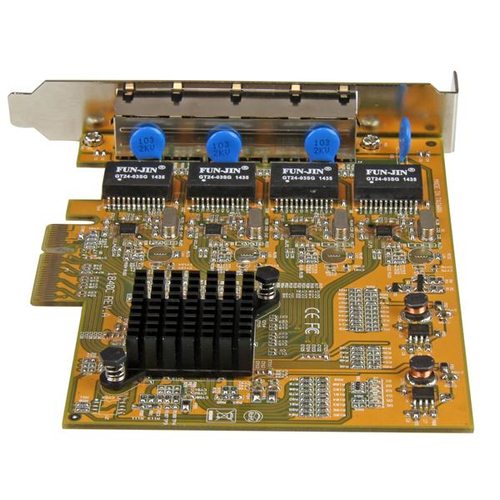

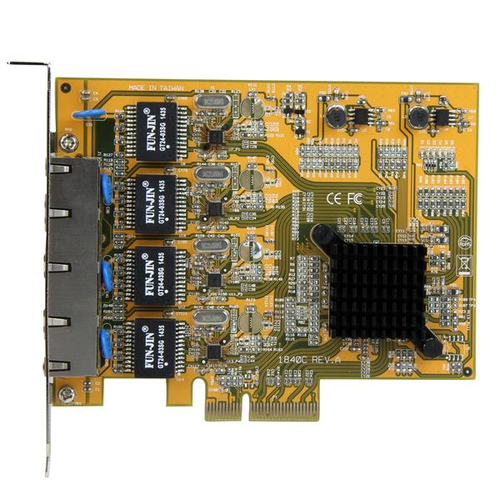

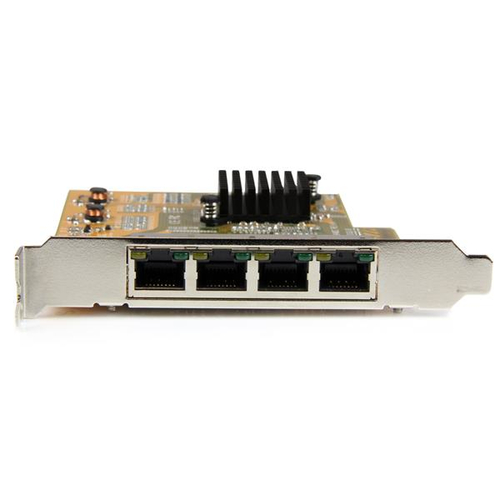

StarTech.com 4-Port PCIe Gigabit Network Adapter Card - TAA, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s

Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot

Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.

Reliable connectivity to multiple networks

This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111H chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.

A versatile and cost-effective solution

This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).

The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.ST1000SPEX43
Our part no.V933586
EAN0065030862448
CategoryNetworking › Network Cards & Line Cards
Weight0.1 kg
Ports & interfaces
Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports4
Network
Maximum data transfer rate2000 Mbit/s
Networking standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Ethernet LANYes
Ethernet LAN data rates10,1000,100 Mbit/s
Cabling technology10/100/1000BaseT(X)
Wake-on-LAN readyYes
Auto MDIX IEEENo
Full duplexYes
Jumbo frames supportYes
Design
InternalYes
ChipsetRealtek RTL8111G
LED indicatorsActivity, Link
System requirements
Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2003, Windows Server 2012, Windows Server 2016, Windows Server 2019
Operational conditions
Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width120 mm
Depth138 mm
Height18 mm
Weight95 g
Packaging data
Package width145 mm
Package depth210 mm
Package height41 mm
Package weight184 g
Technical details
Compliance certificatesCE, RoHS
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width446 mm
Master (outer) case length530 mm
Master (outer) case height338 mm
Products per master (outer) case50 pc(s)
Other features
Flow control supportYes
Case colourYellow
