StarTech.com M.2 SSD Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) with USB-C Cable - TAA, SSD enclosure, M.2, M.2, 10 Gbit/s, USB connectivity, Black, Silver

Turn your M.2 SATA drive into an ultra-fast, ultra-portable storage solution for USB-C enabled devices

This compact M.2 SATA SSD enclosure lets you add highly portable data storage to any laptop or computer with a USB-C™ port - such as MacBook, Chromebook Pixel™, Dell™ XPS laptops, and many others. It turns your SATA M.2 drive into a high-speed storage solution over a USB 3.1 Gen 2 connection, at up to 10Gbps throughput.

A truly portable solution

This slim, pocket-sized enclosure for M.2 NGFF SATA SSDs has been specially designed for mobility, with a small form factor design that fits easily into your laptop bag. Its lightweight yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.

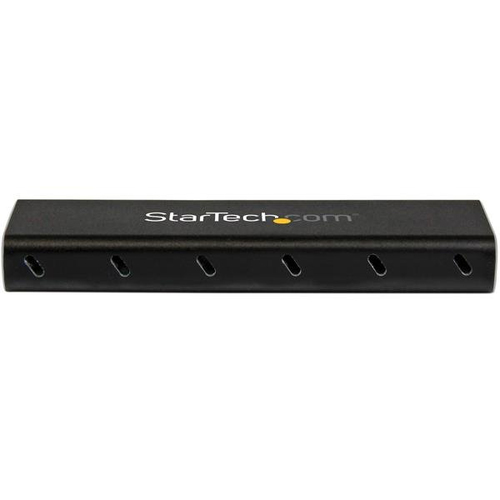

Ventilation holes help to dissipate heat and help ensure an optimum operating temperature.

Maximize the performance of your M.2 SATA SSD

Leverage the speed of your M.2 NGFF SATA drive with this external enclosure. It delivers USB 3.1 Gen 2 data transfer speeds up to 10Gbps as well as UASP support, so you can achieve higher transfer speeds when you connect it to a UASP-enabled host computer.

The enclosure works with tablets, laptops and desktop computers and is compatible with hosts equipped with Thunderbolt 3 USB-C ports.

Broad compatibility

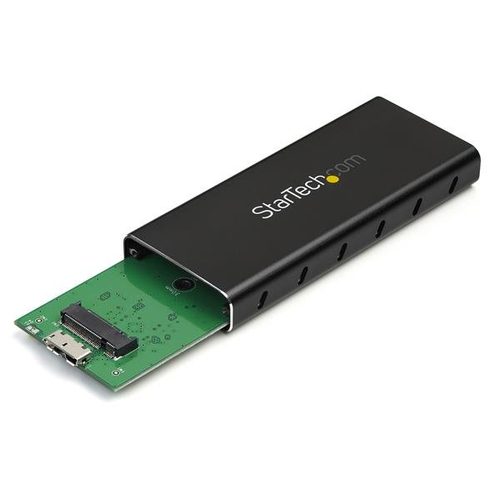

The enclosure is compatible with all of the common M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).

The SM21BMU31C3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.SM21BMU31C3
Our part no.V933675
EAN0065030864435
CategoryHard Drives & SSDs › Other (0516)
Weight0.1 kg
Storage
Number of storage drives supported1
Storage drive sizeM.2
Supported storage drive interfacesM.2
Supported storage drive lengths80 mm
Ports & interfaces
USB connectivityYes
USB version3.2 Gen 2 (3.1 Gen 2)
USB connector typeMicro-USB B
USB connector genderFemale
USB ports quantity1
Integrated USB cableNo
Design
Product typeSSD enclosure
Product colourBlack, Silver
MaterialAluminium
LED indicatorsActivity, Power
CertificationCE, FCC, TAA, REACH
Performance
Data transfer rate10 Gbit/s
ChipsetASMedia - ASM1351
UASP supportYes
Mean time between failures (MTBF)1000000 h
Plug and PlayYes
Power
Power source typeUSB
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width42 mm
Depth99 mm
Height13 mm
Weight61 g
Package width161 mm
Package depth128 mm
Package height34 mm
Package weight139 g
Packaging content
Cables includedUSB
Screws includedYes
Screwdriver includedYes
Quick installation guideYes
Technical details
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width478 mm
Master (outer) case length548 mm
Master (outer) case height330 mm
Products per master (outer) case100 pc(s)
