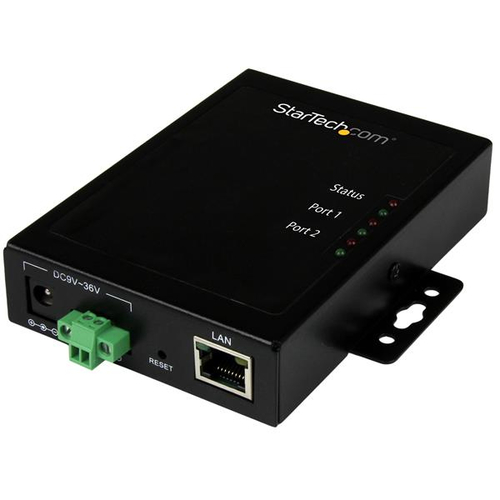

StarTech.com 2-Port Serial-to-IP Ethernet Device Server - RS232 - Metal and Mountable - TAA, 10/100Base-T(X), AC, 100 - 240 V, 12 V, 3 A, AU, EU, UK, US
Connect, configure and manage two remote RS232 serial devices, over an IP network
This 2-port serial device server is a cost-effective way to remotely connect to and manage two serial devices over your typical IP network. The device server integrates two RS232 ports into a rugged metal housing with an extended operating temperature range, so it’s perfect for factory and industrial settings.
Flexible installation, in a range of environments
If you’re looking for a reliable serial-over-IP control solution, then this device server can help. With a rugged metal housing and an extended operating temperature range, you can rest assured that the device server can deliver the reliable performance you need, even in harsh environments.
Plus, it features two integrated mounting brackets, so you can mount the device server to a surface or a wall as needed, for out-of-the-way installations.
Backup power keeps your devices connected

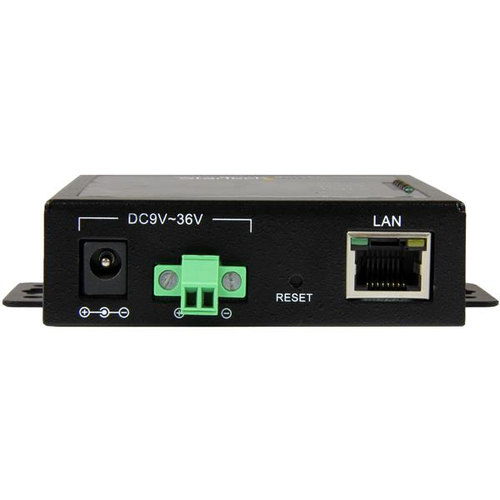

With redundant power input, this dual-port serial device server ensures seamless operation, even in the event of power dips or failures. It features a wide-range, terminal block power input (9~36V DC), and includes a universal power adapter.
Because it features two power inputs, if you experience a power disruption the device server automatically switches to its secondary power source. With redundant power input, the device server remains operational if one of the power sources fails, so you can continue to connect to and manage your serial devices when needed.
Completely customizable
This highly customizable device server is easy to configure to suit your application. For easy setup, Windows® users can use the provided Virtual COM port software, or the versatile Web-based interface.
The RS232 device server supports Telnet (an operating system independent communication protocol), so it can be integrated into mixed OS environments (Windows, Mac, Linux®). Plus, it supports VCOM, TCP, ICMP, IP, TCP, UDP, DHCP, and BOOTP protocols.
The NETRS2322P is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | NETRS2322P |
| Our part no. | V933694 |
| EAN | 0065030864145 |
| Category | Networking › Console Servers |
| Weight | 0.6 kg |
| Technical details | |
| Serial ports quantity | 2 |
| Serial interface type | RS-232 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Electrostatic Discharge (ESD) protection | 15 kV |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Baud rate | 460.8 Kbit/s |
| Auto MDI/MDI-X | Yes |
| Data bits | 7, 8 |
| Flow Control type | No, RTS/CTS, XON/XOFF |
| Parity bit | Even, Mark, Odd, Space |
| Electrostatic Discharge (ESD) protection (air) | 15 kV |
| Electrostatic Discharge (ESD) protection (contact) | 8 kV |
| Compliance certificates | RoHS |
| Certification | CE, FCC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
| Power | |
| Power source type | AC |
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 3 A |
| Compatible power plug types | AU, EU, UK, US |
| Input current | 1.5 A |
| Protocols | |
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet |
| Indication | |
| LED indicators | Activity, LAN, Link, Status |
| Software | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64 |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012 |
| Weight & dimensions | |
| Weight | 320 g |
| Dimensions (WxDxH) | 81 x 112 x 23 mm |
| Package width | 151 mm |
| Package depth | 217 mm |
| Package height | 55 mm |
| Package weight | 685 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 85 °C |
| Storage temperature (T-T) | -45 - 130 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Packaging content | |
| User guide | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Products per master (outer) case | 16 pc(s) |
| Master (outer) case length | 476 mm |
| Master (outer) case width | 344 mm |
| Master (outer) case height | 246 mm |
