Description
StarTech.com HDMI Signal Booster - 115 ft - 1080p, 1920 x 1080 pixels, AV repeater, 35 m, Black
Amplify the strength of your HDMI signal to extend your video source up to 115 ft. over standard HDMI cable
This HDMI signal booster lets you increase the signal strength of your HDMI video source so you can connect an HDMI display up to 115 ft. (35 m) away, using standard HDMI cables. You can place the booster inline between two HDMI cables, up to 82 ft. in length at the video input, and up to 33 ft. in length at the video output.
Discreet installation
With its small form factor, the HDMI booster is easy to hide, for a discreet installation. You don’t need an external power adapter to operate the signal booster, and it includes mounting hardware, so installing it is hassle-free. By extending your video signal using standard HDMI cables, the HDMI booster is a cost-effective alternative to more expensive HDMI extension systems that require the installation of CAT5 or CAT6 cabling infrastructure.
Compatible with varying distances

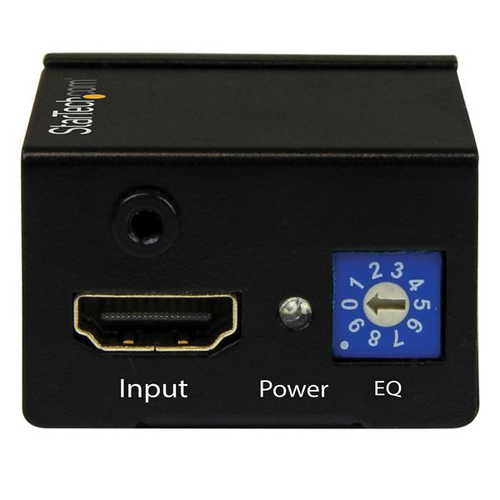

The HDMI booster features an equalization switch with ten different levels. The equalization switch lets you adjust the amplification of your HDMI signal based on the distance of your cables, so that you can ensure your HDMI signal will be perfect even at distances up to 115 ft. (35 m). The booster is perfect for boardrooms, offices or classrooms that may require varying distances depending on the room size.
Maintains high-definition video signals
When extending HDMI over long distances using standard video cabling, higher resolutions can become unavailable. Using the HDMI signal booster ensures that you’ll still be able to depend on high-definition resolutions up to 1080p at 60Hz.
The HDBOOST is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | HDBOOST |
| Our part no. | V933723 |
| EAN | 0065030863209 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0.1 kg |
| Features | |
| Type | AV repeater |
| Maximum resolution | 1920 x 1080 pixels |
| Maximum transfer distance | 35 m |
| Audio system | Multichannel |
| Audio output channels | 7.1 channels |
| LED indicators | Power |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+) |
| Rack mounting | Yes |
| Product colour | Black |
| Certification | CE, FCC |
| Ports & interfaces | |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| DC-in jack | Yes |
| Power | |
| AC input voltage | 100-240 V |
| Operating voltage | 5 V |
| Output current | 1 A |
| Power plug type | Type N |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Dimensions (WxDxH) | 42.2 x 54.2 x 26.2 mm |
| Weight | 72 g |
| Packaging data | |
| Package dimensions (WxDxH) | 143 x 168 x 63 mm |
| Package width | 143 mm |
| Package depth | 174 mm |
| Package height | 33 mm |
| Package weight | 163 g |
| Packaging content | |
| Mounting brackets included | Yes |
| Technical details | |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 570 mm |
| Master (outer) case length | 538 mm |
| Master (outer) case height | 314 mm |
| Products per master (outer) case | 100 pc(s) |
