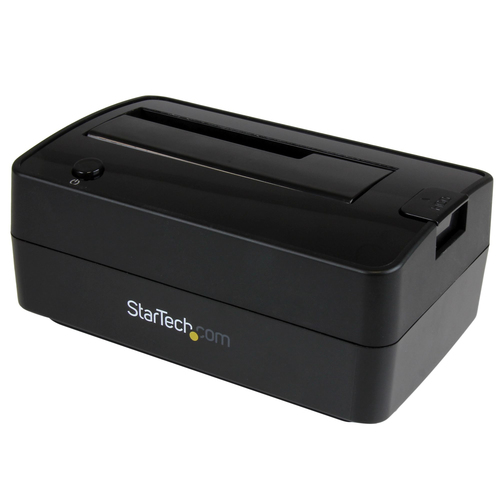

StarTech.com Single Bay USB 3.1 / eSATA to SATA Hard Drive Docking Station, USB 3.1 (10 Gbps) Hard Drive Dock, External 2.5/3.5" SATA III HDD/SSD Docking Station, Top-Loading Hard Drive Bay, HDD, SSD, Serial ATA, Serial ATA II, Serial ATA III, 2.5,3.5", 6 TB, USB 3.2 Gen 2 (3.1 Gen 2) Type-B, Black

External SSD/HDD Docking Station | USB 3.2 Gen 2 (10 Gbps) / eSATA to SATA

Connect and access any 2.5" or 3.5" SATA hard drive or SSD using this single-drive docking station, over a USB 3.1 Gen 2 (up to 10Gbps) or eSATA connection.

Supports USB 3.1 Gen 2 and eSATA for flexible use

Ideal for IT professionals, the docking station lets you access a SATA solid-state drive or hard drive quickly, for drive imaging, data recovery, and backups.

You can connect through either USB 3.1 Gen 2 or eSATA, and take advantage of the high performance of the latest SSDs and HDDs.

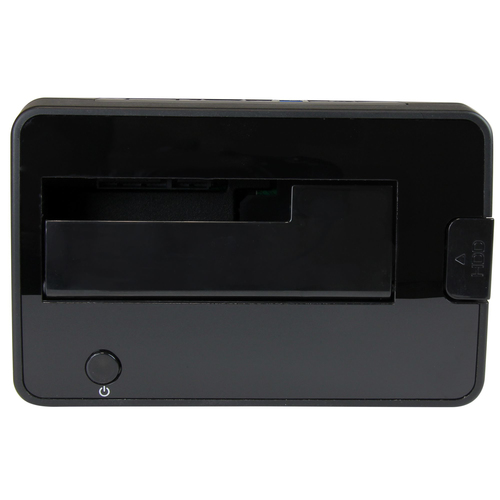

Top-loading design for easy drive access

The dock's vertical drive insertion makes it easy to dock and swap drives from your desktop computer or laptop. You simply insert your SSD or HDD into the drive slot at the top of the docking station, with no tools or trays required. The HDD ejection button allows fast and simple drive removal.

Convenient compatibility

The single-bay docking station comes with a USB Type-A to Type-C cable, for connecting to newer USB-C enabled devices. It also comes with a USB Type-A to Type-B cable, providing backward compatibility with your existing USB 3.0, 2.0 and 1.x devices. An eSATA cable is also included with the dock.

The docking station is also UASP compatible, for enhanced performance.

The SDOCKU313E is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.SDOCKU313E
Our part no.V933844
EAN0065030863544
CategoryHard Drives & SSDs › Other (0516)
Weight0.8 kg
Hard drive
Storage media typeHDD, SSD
Storage drive interfaceSerial ATA, Serial ATA II, Serial ATA III
Storage drive sizes supported2.5,3.5"
Number of storage drives supported1
Maximum storage capacity6 TB
Ports & interfaces
Host interfaceUSB 3.2 Gen 2 (3.1 Gen 2) Type-B
eSATA ports quantity1
DC-in jackYes
Features
Product colourBlack
MaterialPlastic
Maximum data transfer rate10 Gbit/s
Hot-swapYes
Plug and PlayYes
LED indicatorsActivity, Power
UASP supportYes
CertificationCE, FCC, REACH
Cooling
Built-in fanNo
Power
AC input voltage110-240 V
Input current0.6 A
Output voltage12 V
Output current2 A
Power plug typeType M
Weight & dimensions
Width93 mm
Depth145 mm
Height63 mm
Weight410 g
Packaging data
Package width98 mm
Package depth162 mm
Package height172 mm
Package weight862 g
Packaging content
AC adapter includedYes
Cables includedUSB, eSATA
Included power plug typesAU, EU, NA, UK
Quick installation guideYes
Operational conditions
Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 50 °C
Operating relative humidity (H-H)20 - 80%
Other features
ChipsetASMedia - ASM1351
Compliance certificatesRoHS
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width190 mm
Master (outer) case length488 mm
Master (outer) case height380 mm
Products per master (outer) case10 pc(s)
