Description

StarTech.com HP AJ717A Compatible SFP+ Transceiver Module - 8GFC~HPE AJ717A Compatible SFP+ Module - 8G Fiber Channel WW - 8GbE Single Mode Fiber Optic Transceiver - 8GE Gigiabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE SN6000, SN6500, SN8600B, Fiber optic, 8000 Mbit/s, SFP+, LC, 10000 m, 1310 nm

8 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

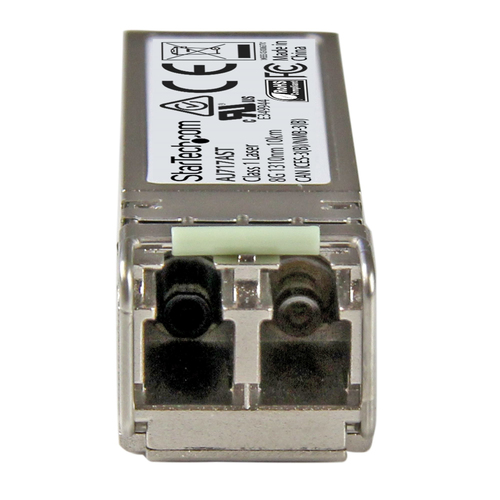

The AJ717AST is an HPE AJ716B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 8Gb fiber channel connectivity over fiber cable, for 8GFC compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310 nm • Maximum Data Transfer Rate: 8 Gbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 10 km (6.2 mi) • MTBF: 2,104,865 hours • Power Consumption: Less than 1.5 Watts • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.AJ717AST
Our part no.V933896
EAN0065030868570
CategoryNetworking › Transceivers & SFPs
Weight0 kg
Performance
SFP transceiver typeFiber optic
Maximum data transfer rate8000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Fiber optic connectorLC
Maximum transfer distance10000 m
Wavelength1310 nm
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes
Features
Product colourSilver
Housing materialAluminium
Hot-swapYes
Mean time between failures (MTBF)2104865 h
Power
Power consumption (typical)1.5 W
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, UR
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width13.9 mm
Depth58.4 mm
Height12.6 mm
Weight21 g
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package width118 mm
Package depth92 mm
Package height33 mm
Package weight49 g
Logistics data
Master (outer) case width354 mm
Master (outer) case length410 mm
Harmonized System (HS) code85369010
Master (outer) case height350 mm
Products per master (outer) case100 pc(s)
Country of originChina
