Description
StarTech.com TV Ceiling Mount - Full-Motion Universal Hanging Single Screen Mount with Adjustable Telescopic Short Pole - Tilt / Swivel - VESA Bracket for 32”-75" Displays, 50 kg, 94 cm (37"), 190.5 cm (75"), 200 x 200 mm, 600 x 400 mm, 560 - 910 mm
Display Ceiling Mount | Full Motion | For 32" to 75" Displays
This ceiling TV mount supports VESA mount compatible TVs from 32" to 75" in size, with a weight capacity of up to 110 lb. (50 kg). It lets you save wall and floor space by hanging your flat-panel LCD, LED or plasma TV from the ceiling in a prominent area.
The ceiling mount is ideal for use in corporate boardrooms, lobbies, entrances, restaurants, bars and meeting places.
Adjustable Height

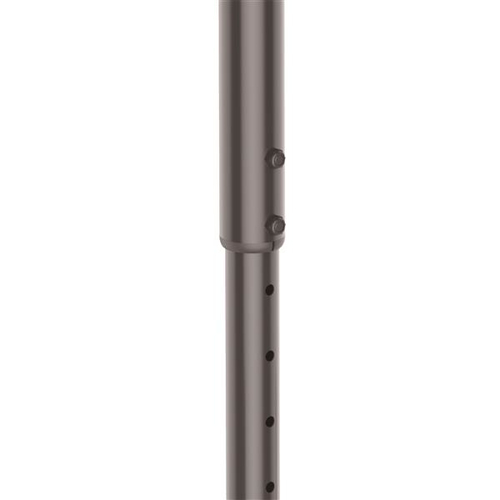

With a telescopic pole, the TV mount lets you suspend a display at your desired distance from the ceiling. This works well with a range of ceiling heights. The steel pole can extend from 22" to 33.5" (560 to 910 mm), with a total lift (height extension) of 13.7" (350 mm).
Swivels to Suit Your Ceiling

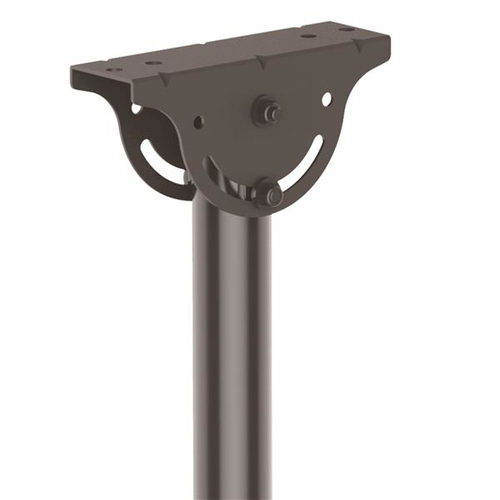

The flat-screen ceiling mount accommodates a wide variety of ceiling types. You can swivel the TV to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to 60 degrees), and pitched or horizontal (flat) ceilings.
Viewable from Any Direction
You can adjust your TV to create a comfortable viewing angle, by tilting it up to -25 degrees down towards your audience for optimum visibility. Plus, the full-motion mount lets you swivel your display around the pole + 180 / - 180 degrees, without using tools.
Hook-and-Mount Design

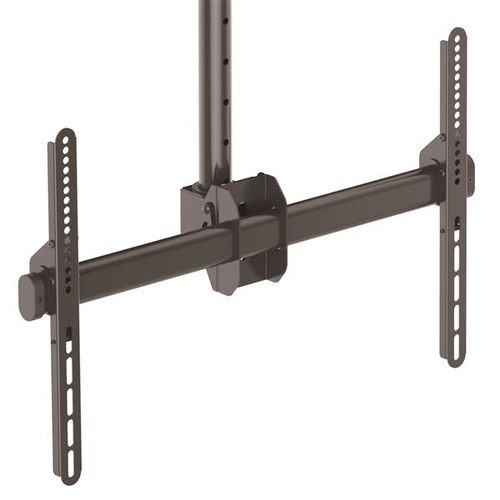

Simply attach the included vertical brackets, with built-in hooks, to the back of your TV. Once attached, hang your TV securely onto the ceiling mount. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.
FPCEILPTBSP is backed by a StarTech.com 5-year warranty and free lifetime technical support.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | FPCEILPTBSP |
| Our part no. | V933968 |
| EAN | 0065030870405 |
| Category | Monitors & Displays › Monitor Mounts & Stands |
| Weight | 21.7 kg |
| Mounting | |
| Maximum weight capacity | 50 kg |
| Minimum screen size | 94 cm (37") |
| Number of displays supported | 1 |
| Maximum screen size | 190.5 cm (75") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 200 mm |
| Maximum VESA mount | 600 x 400 mm |
| Panel mounting interface | 200 x 200,300 x 300,400 x 200,400 x 400,600 x 400 |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment range | 560 - 910 mm |
| Tilt angle range | -25 - 0° |
| Swivel angle range | -180 - 180° |
| Angle of rotation | 360° |
| Pivot angle | -180 - 180° |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Anti-theft function | No |
| Certification | REACH, CE |
| Weight & dimensions | |
| Width | 680 mm |
| Depth | 680 mm |
| Depth (max) | 43.5 cm |
| Height | 1150 mm |
| Weight | 4.9 kg |
| Packaging data | |
| Package width | 776 mm |
| Package depth | 380 mm |
| Package height | 150 mm |
| Package weight | 6.8 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Screws included | Yes |
| Number of screws | 24 |
| Wrench included | Yes |
| Washers included | Yes |
| Number of washers included | 8 |
| Spacer included | Yes |
| Number of spacers included | 8 |
| Technical details | |
| Package dimensions (WxDxH) | 366 x 771 x 149 mm |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
| Master (outer) case width | 795 mm |
| Master (outer) case length | 393 mm |
| Master (outer) case height | 469 mm |
| Products per master (outer) case | 3 pc(s) |
