Description
StarTech.com MSA Uncoded SFP Module - 100BASE-LX - 100MbE Single Mode Fiber (SMF) Optic Transceiver - 100Mb Ethernet SFP - LC 10km - 1310nm - DDM, Fiber optic, 155 Mbit/s, SFP, LC, LX, 10000 m
100 Mbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

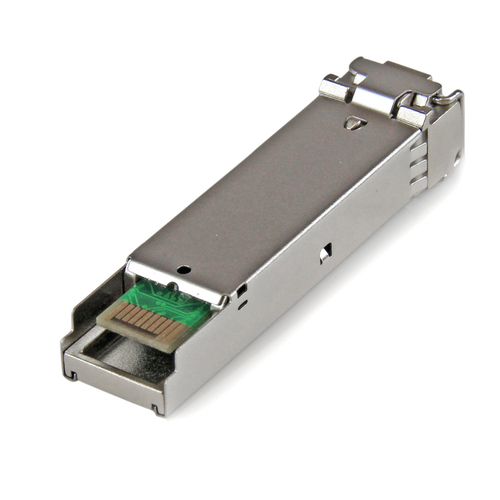

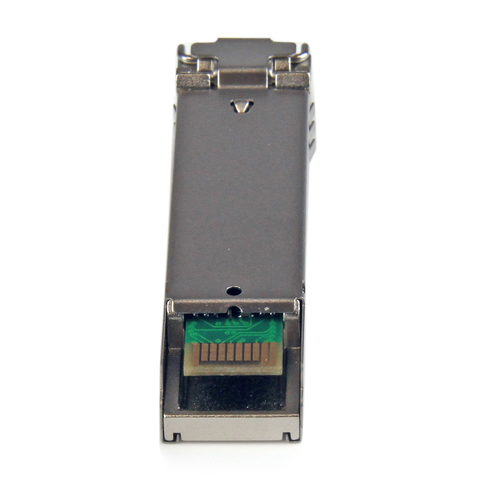

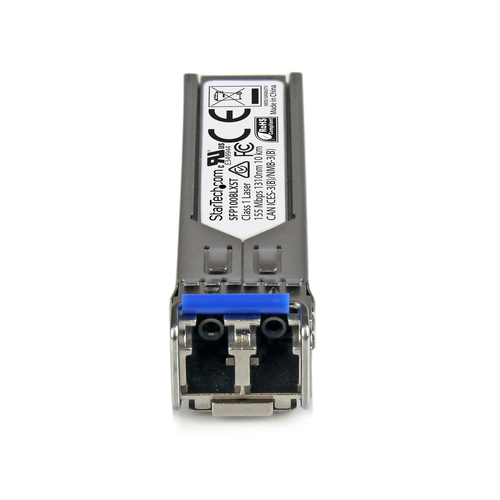

The SFP100BLXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 100BASE-LX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 100 Mb Ethernet connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1310nm • Maximum Data Transfer Rate: 155 Mbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 10 km (6.2 mi) • Power Consumption: Less than 1 Watt • DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SFP100BLXST |
| Our part no. | V934154 |
| EAN | 0065030873468 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0.1 kg |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 155 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Fiber optic connector | LC |
| SFP transceiver standard | LX |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Networking standards | IEEE 802.3u |
| Duplex system | Full, Half |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Power | |
| Power consumption (typical) | 1 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 59 mm |
| Height | 13 mm |
| Weight | 30 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 91 mm |
| Package depth | 114 mm |
| Package height | 33 mm |
| Package weight | 95 g |
| Logistics data | |
| Master (outer) case width | 250 mm |
| Master (outer) case length | 300 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 200 mm |
| Products per master (outer) case | 36 pc(s) |
| Country of origin | China |
