Description

StarTech.com MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m, Copper, 10000 Mbit/s, SFP+, 30 m, IEEE 802.3an, 10GBASE-T

10 Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

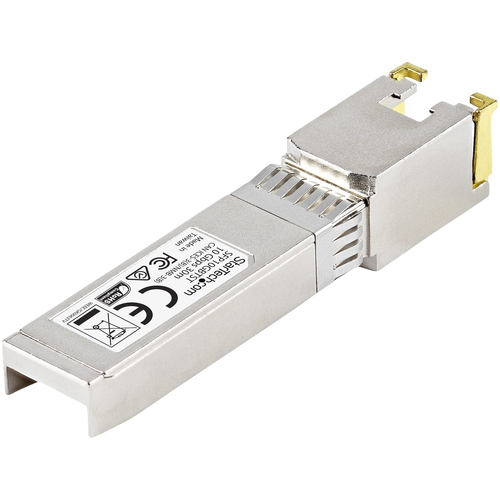

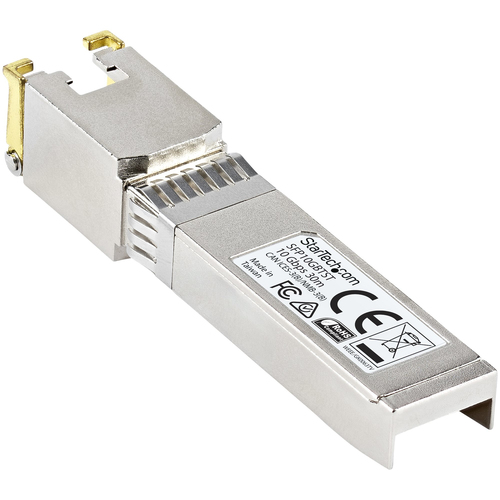

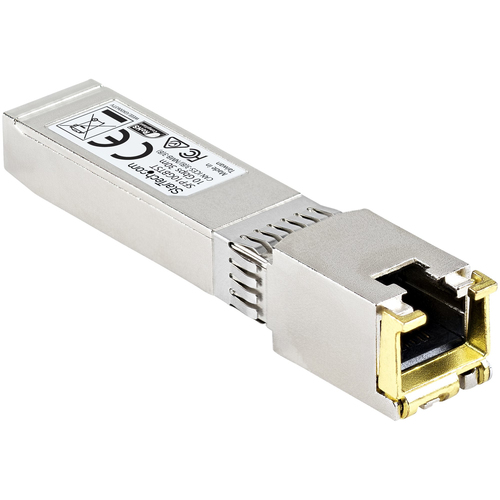

The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 30 m (98.4 ft.) • MTBF: 4,598,430 hours DDM: No >

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

BrandSTARTECH
Manufacturer part no.SFP10GBTST
Our part no.V934175
EAN0065030873376
CategoryNetworking › Transceivers & SFPs
Weight0 kg
Performance
SFP transceiver typeCopper
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Maximum transfer distance30 m
Networking standardsIEEE 802.3an
Cabling technology10GBASE-T
Ethernet LAN (RJ-45) ports1
Duplex systemFull
Auto MDI/MDI-XYes
Digital Diagnostics Monitoring (DDM)No
Features
Product colourSilver
Housing materialZinc steel
Hot-Plug supportYes
Brand compatibilityMSA Compliant
Power
Power consumption (typical)2.3 W
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 85 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width13.9 mm
Depth70 mm
Height12.6 mm
Weight28 g
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package width119 mm
Package depth76 mm
Package height34 mm
Package weight60 g
Logistics data
Master (outer) case width342 mm
Master (outer) case length638 mm
Harmonized System (HS) code85369010
Master (outer) case height290 mm
Products per master (outer) case150 pc(s)
Country of originChina
