Description

StarTech.com 8 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 19" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support, 48.3 cm (19"), 1280 x 1024 pixels, TFT LCD, 250 cd/m², 1000:1, 0.264 x 0.264 mm

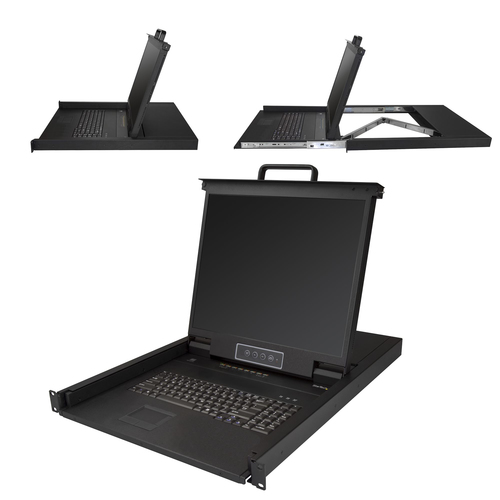

Control your server or KVM switch from a centralized LCD KVM drawer

This rack-mount KVM console provides complete keyboard, monitor and mouse control for eight computers. The rack-mount console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This 8-port KVM switch provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in touchpad, keyboard (QWERTY) for intuitive control and an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

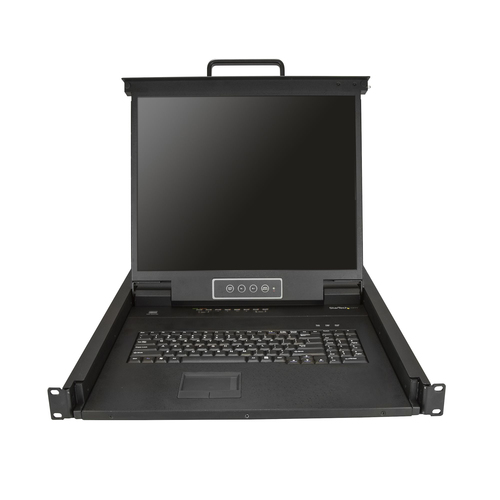

This versatile rack-mount LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

The console slides out from 1U of rack space, enabling you to easily monitor and control eight servers and even more if connecting through a KVM switch. The rackmount VGA console features a handle for easy sliding in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

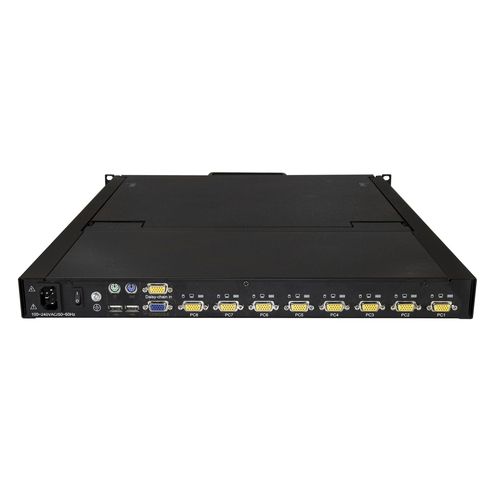

The rackmount LCD features an 8-port KVM module, which enables you to connect it directly to eight servers. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

The RKCONS1908K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.RKCONS1908K
Our part no.V934366
EAN0065030872508
CategoryNetworking › KVM & Extenders
Weight21 kg
Display
Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
DisplayTFT LCD
Display brightness250 cd/m²
Contrast ratio (typical)1000:1
Pixel pitch0.264 x 0.264 mm
Display typeLCD
Display number of colours16.78 million colours
Colour depth8 bit
Technical details
MaterialSteel
Mean time between failures (MTBF)50000 h
Product colourBlack
Operating relative humidity (H-H)10 - 80%
Audio supportNo
Daisy chainNo
Key lockNo
IP controlNo
Number of computers controlled8
Sustainability certificatesUL ECOLOGO
Compliance certificatesCE, RoHS
Rack capacity1U
Ports & interfaces
VGA (D-Sub) ports quantity9
Keyboard port typeUSB
Mouse port typeUSB
Video port typeVGA
USB 2.0 Type-A ports quantity2
Keyboard
Built-in touchpadYes
Power
Power consumption (typical)21 W
AC adapter input voltage100 - 240 V
Input current1.5 A
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Width483 mm
Height43 mm
Depth643 mm
Weight13.4 kg
Mounting depth (min)60.5 cm
Mounting depth (max)89 cm
Packaging data
Package width775 mm
Package depth624 mm
Package height189 mm
Package volume19000 cm³
Packaging content
Cables includedKVM
Screws includedYes
Number of screws8
Mounting brackets includedYes
Cage nuts includedYes
Number of cage nuts8
Included power plug typesANZ, EU, JP, NA, UK
Quick installation guideYes
Logistics data
Master (outer) case width780 mm
Master (outer) case length629 mm
Master (outer) case height189 mm
Products per master (outer) case1 pc(s)
