StarTech.com 10m (30ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord, 10 m, OM3, MPO/MTP, 8x LC

Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+

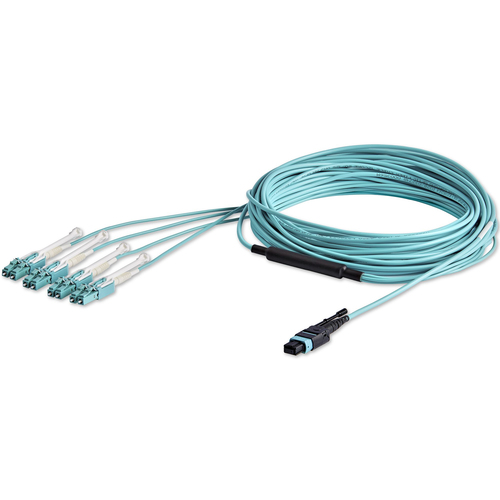

This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

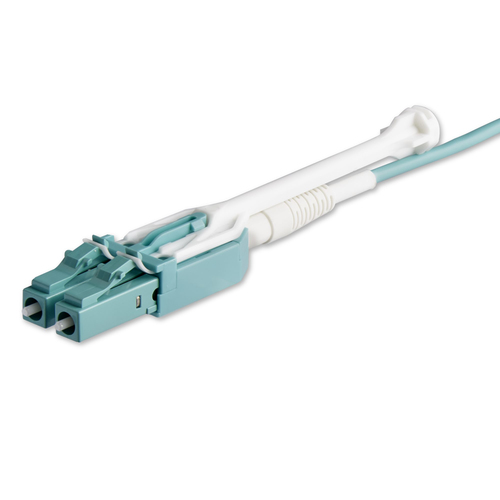

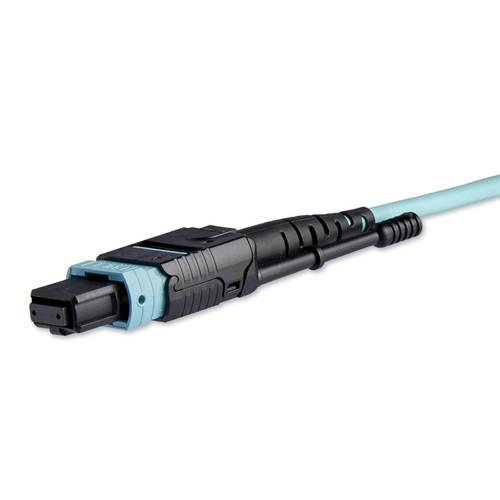

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

The MPO cable is housed in a plenum-rated jacket and is ideal for in-wall installations or anywhere CMP fire rating is required.

Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.

The MPO8LCPL10M from StarTech.com is backed by a lifetime warranty.

Specifications

BrandSTARTECH
Manufacturer part no.MPO8LCPL10M
Our part no.V934379
EAN0065030879002
CategoryCables & Adapters › Specialist Cables
Weight0.4 kg
Features
Cable length10 m
Fibre optic typeOM3
Connector 1MPO/MTP
Connector 28x LC
Connector 1 genderMale
Connector 2 genderMale
Product colourAqua colour
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Data transfer rate40 Gbit/s
Certificates
Compliance certificatesRoHS
Weight & dimensions
Weight991.4 g
Packaging data
Package width199 mm
Package depth164 mm
Package height24 mm
Package weight114 g
Logistics data
Master (outer) case width198 mm
Harmonized System (HS) code85447000
Master (outer) case length386 mm
Master (outer) case height228 mm
Products per master (outer) case20 pc(s)
