Description

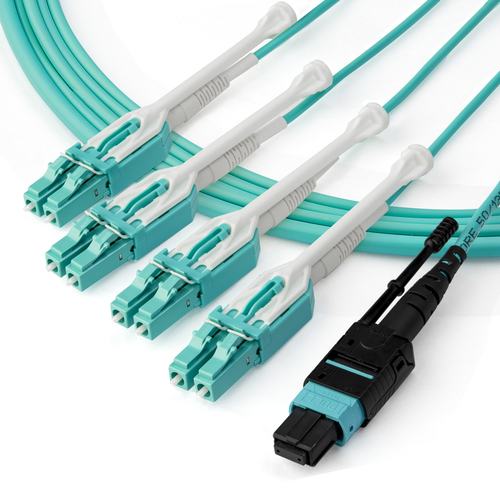

StarTech.com 3m (10ft) MTP(F)/PC to 4x LC/PC Duplex Breakout OM3 Multimode Fiber Optic Cable, OFNP Plenum, 40G Networks, Low Insertion Loss - Fiber Jumper Cord, 3 m, OM3, MPO/MTP, 8x LC
Plenum Rated | OFNP Fiber | Ideal for SANs, data servers, QSFP+
This MPO/MTP to 4x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers.

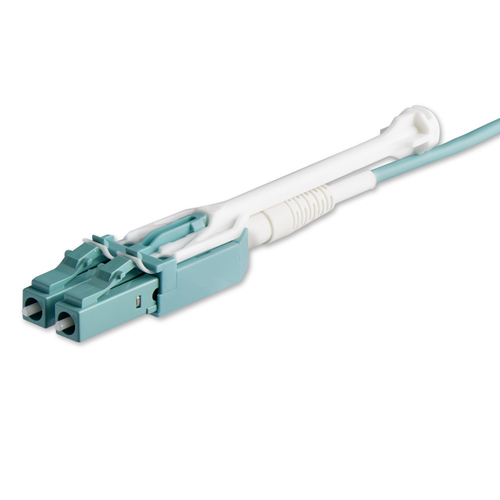

The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without having to use additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management.

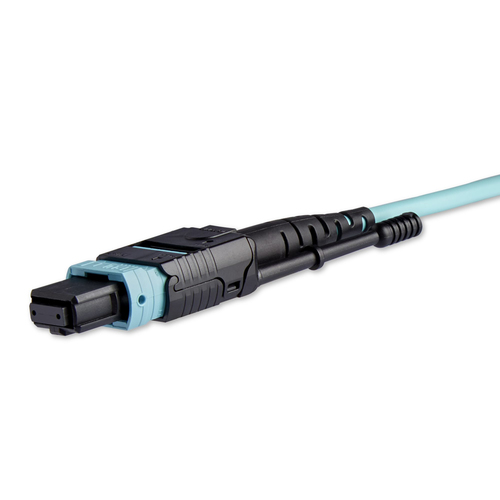

The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required.
Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag.
The MPO8LCPL3M from StarTech.com is backed by a lifetime warranty.
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | MPO8LCPL3M |
| Our part no. | V934382 |
| EAN | 0065030878944 |
| Category | Cables & Adapters › Specialist Cables |
| Weight | 0.6 kg |
| Features | |
| Cable length | 3 m |
| Fibre optic type | OM3 |
| Connector 1 | MPO/MTP |
| Connector 2 | 8x LC |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Product colour | Aqua colour |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Fiber mode structure | Multi-mode |
| Data transfer rate | 40 Gbit/s |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Weight | 55 g |
| Packaging data | |
| Package width | 199 mm |
| Package depth | 154 mm |
| Package height | 21 mm |
| Package weight | 62 g |
| Logistics data | |
| Master (outer) case width | 200 mm |
| Harmonized System (HS) code | 85447000 |
| Master (outer) case length | 392 mm |
| Master (outer) case height | 238 mm |
| Products per master (outer) case | 50 pc(s) |
