Description

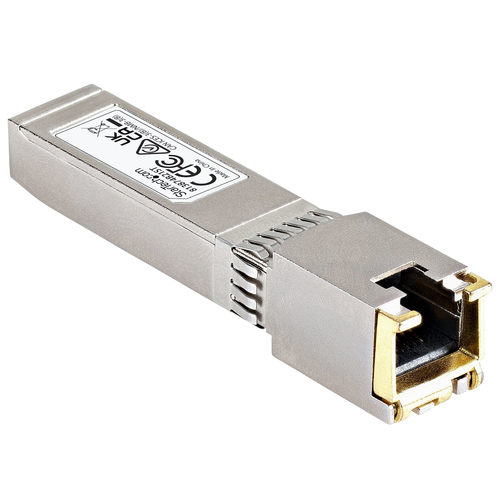

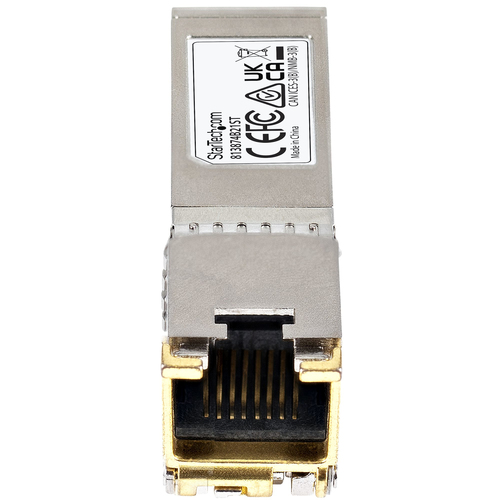

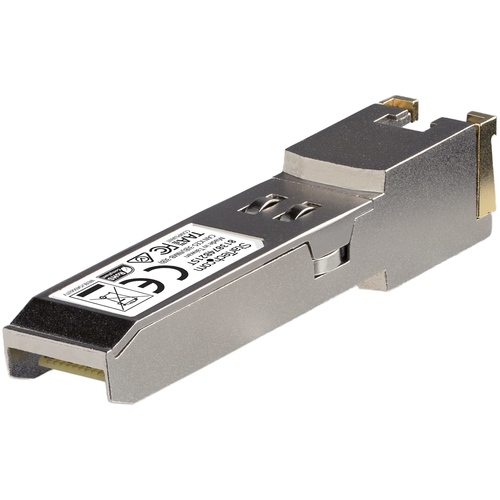

StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class, Copper, 10000 Mbit/s, SFP+, 30 m, IEEE 802.3an, Silver

10Gbps | Copper | RJ45 | 30 m (98.4 ft) | Lifetime Warranty

The 813874B21ST is an HPE 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).

Technical Specifications:

• Maximum Data Transfer Rate: 10 Gbps • Type: Copper • Connection Type: RJ45 Connector • Maximum Transfer Distance: 30 m (98.4 ft) • MTBF: 4,598,430 hours • Digital Diagnostics Monitoring (DDM): No

This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

BrandSTARTECH
Manufacturer part no.813874B21ST
Our part no.V934409
EAN0065030880305
CategoryNetworking › Transceivers & SFPs
Weight0 kg
Performance
SFP transceiver typeCopper
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Maximum transfer distance30 m
Networking standardsIEEE 802.3an
Ethernet LAN (RJ-45) ports1
Auto MDI/MDI-XYes
Digital Diagnostics Monitoring (DDM)No
Features
Product colourSilver
Housing materialZinc steel
Hot-swapYes
Mean time between failures (MTBF)4598430 h
Brand compatibilityHP
Power
Power consumption (typical)2.3 W
Certificates
Compliance certificatesRoHS
CertificationCE, FCC
Operational conditions
Operating temperature (T-T)0 - 70 °C
Storage temperature (T-T)-40 - 90 °C
Operating relative humidity (H-H)0 - 95%
Weight & dimensions
Width13.4 mm
Depth69.8 mm
Height13.8 mm
Weight58 g
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package width120 mm
Package depth76 mm
Package height34 mm
Package weight31 g
Logistics data
Master (outer) case width340 mm
Master (outer) case length638 mm
Harmonized System (HS) code85369010
Master (outer) case height290 mm
Products per master (outer) case150 pc(s)
Country of originChina
