Description

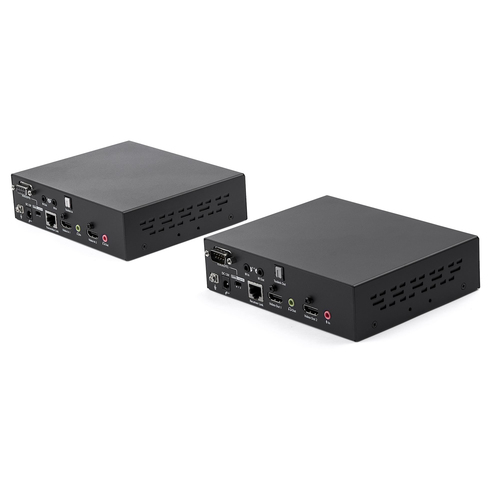

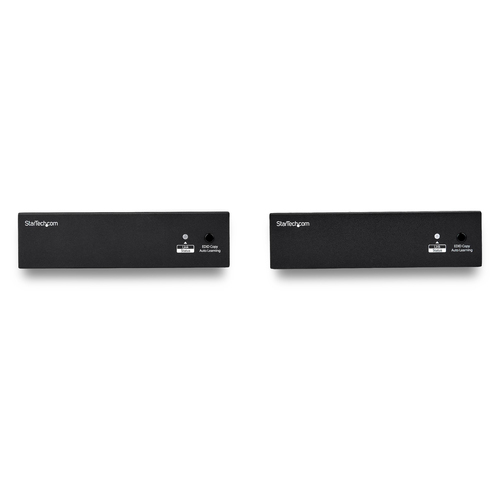

StarTech.com Dual HDMI over CAT6 Extender - 1080p, 1920 x 1080 pixels, AV transmitter & receiver, 90 m, Wired, Black

Extend two HDMI signals to distances up to 295 ft. (90m) over a single CAT5e or CAT6 cable

This HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295 ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.

Dual source support

Reduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only one cable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it's place.

Bi-directional control

With bi-directional IR control, you can control your devices from either end of the extension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. The extender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.

Simplified setup

The simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.

The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.ST222HDBT
Our part no.V934427
EAN0065030878470
CategoryCables & Adapters › HDMI Cables & Extenders
Weight2.5 kg
Features
TypeAV transmitter & receiver
Maximum resolution1920 x 1080 pixels
Cable types supportedCat5e, Cat6
Maximum transfer distance90 m
ChipsetVS2310TX, VS2310RX
Maximum refresh rate60 Hz
Audio output channels7.1 channels
LED indicatorsLink, Status
Supported video modes720p, 1080p
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Daisy chainNo
Rubber feetYes
Product colourBlack
CertificationCE, FCC, TAA

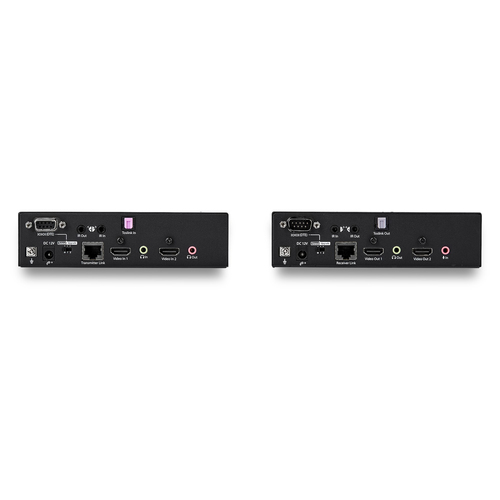

Ports & interfaces
Connectivity technologyWired
RJ-45 input ports1
RJ-45 output ports1
HDMI in2
Number of HDMI outputs2
Audio input1 x Toslink
Audio output1 x Toslink
Serial ports quantity2
Serial interface typeRS-232
3.5 mm (1/8-inch) inYes
3.5 mm (1/8-inch) outYes
Remote (IR) input2
Remote (IR) output2
DC-in jackYes
Power
AC input voltage100 - 240 V
Operating voltage12 V
Output current1.5 A
Power plug typeType M
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)0 - 80%
Weight & dimensions
Weight200 g
Receiver dimensions (WxDxH)130 x 158 x 43 mm
Receiver weight200 g
Transmitter dimensions (WxDxH)130 x 158 x 43 mm
Transmitter weight200 g
Packaging data
Package width224 mm
Package depth475 mm
Package height67 mm
Package weight1.43 kg
Packaging content
Cables includedLAN (RJ-45)
Included power plug typesANZ, EU, JP, NA, UK
ManualYes
IR blaster includedYes
IR receiver includedYes
Mounting brackets includedYes
Technical details
Compliance certificatesRoHS
Logistics data
Master (outer) case width300 mm
Master (outer) case length485 mm
Master (outer) case height253 mm
Products per master (outer) case4 pc(s)
