Description
StarTech.com 4 Port Dual Monitor DVI KVM Switch - Dual Screen Display Compact USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dual View KVM - Dell HP Apple Lenovo - TAA Compliant, 2048 x 1536 pixels, 18 W, Black
USB 3.0 KVM Switch | TAA Compliant | 1920 x 1200 Digital Resolution | Stereo Audio & Mic
The TAA compliant Dual-Monitor DVI KVM Switch controls four multimedia computer systems from one dual-DVI monitor workstation.
Increase Productivity
The KVM switch supports four separate multimedia computer systems and the use of a dual DVI-D single-link monitor workstation, increasing productivity by enabling you to access more information at once.
Integrated USB 3.0 Hub
The 2-port hub that’s built into the USB 3.0 KVM switch shares two additional peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected while supporting high-performance peripherals such as flash drives and video capture devices.
Full Multimedia Support
With support for separate stereo audio and microphones, the KVM switch box connects everything you need directly to your systems, saving you money and desk space.
Easy to Operate

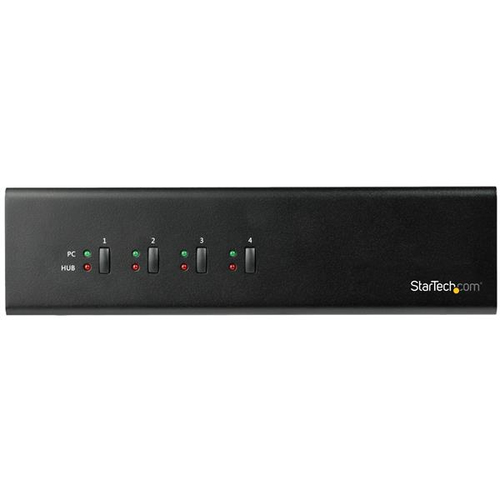

The front-panel push-buttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while an optional buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 4-port DVI USB KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | SV431DD2DU3A |
| Our part no. | V934442 |
| EAN | 0065030858205 |
| Category | Networking › KVM & Extenders |
| Weight | 1.6 kg |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-I |
| DVI-I ports quantity | 10 |

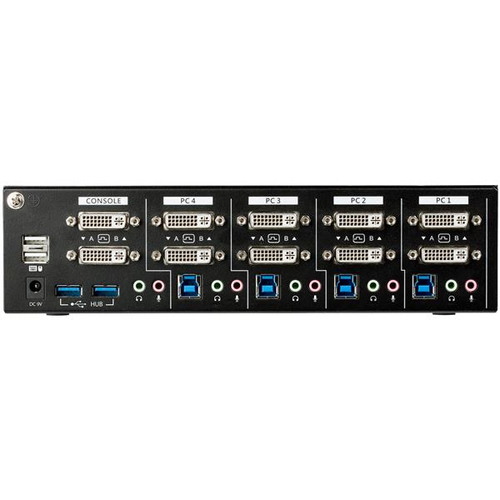

| Console ports | 3.5mm headphone, 3.5mm mic, DVI-I, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| USB connector type | USB Type-B |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
| Performance | |
| Maximum resolution | 2048 x 1536 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 2048 x 1536 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 10,20,30,40,50,60 s |
| Daisy chain | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 9 V |
| Output current | 2 A |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Compatible power plug types | AU, EU, JP, UK, US |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 253 mm |
| Depth | 100 mm |
| Height | 66 mm |
| Weight | 1.3 kg |
| Packaging data | |
| Package width | 160 mm |
| Package depth | 268 mm |
| Package height | 191.5 mm |
| Package weight | 300 g |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Other features | |
| IP control | No |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 495 mm |
| Master (outer) case length | 554 mm |
| Master (outer) case height | 213 mm |
| Products per master (outer) case | 6 pc(s) |
