Description

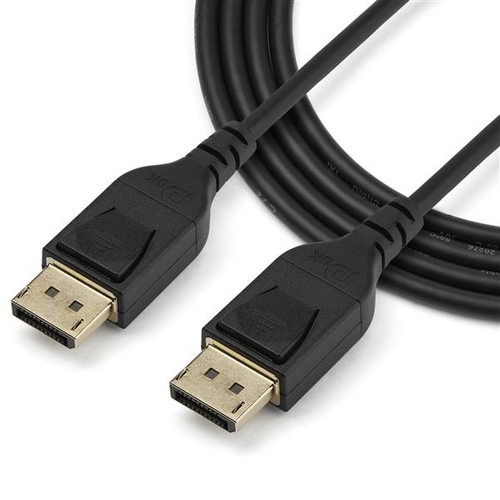

StarTech.com 6ft (2m) VESA Certified DisplayPort 1.4 Cable - 8K 60Hz HBR3 HDR - UHD DisplayPort to DisplayPort Monitor Cord - Ultra HD 4K 120Hz DP 1.4 Slim Video Cable M/M DP Connector, 2 m, DisplayPort, DisplayPort, Male, Male, 7680 x 4320 pixels

Slim DP Monitor Cable | 8K@60Hz | HBR3 | HDR | Gold-Plated | Lifetime Warranty

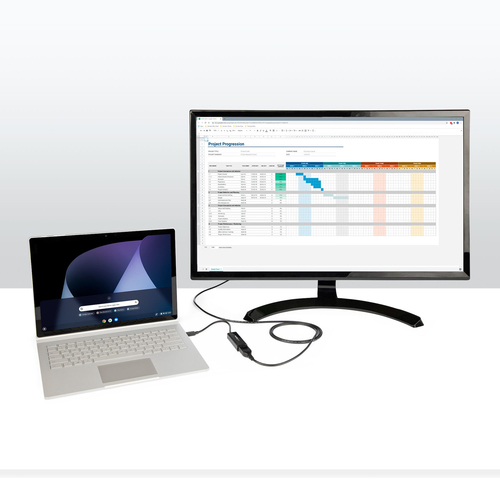

This DisplayPort 1.4 cable connects your DisplayPort™ laptop, Chromebook or desktop computer to a "super ultra-high definition" 8K monitor, TV or projector. It supports resolutions up to 8K (7680x4320) @ 60Hz.

The DisplayPort monitor cable provides the essential connection to support the next generation of super ultra-high definition video.

This cable is VESA® to ensure full compliance and efficient operation of the higher link rate of HBR3. It has been tested to meet all DP 1.4 specifications to ensure quality and reliability.

The Superior Performance of DisplayPort 1.4

This 8K DisplayPort cable supports all DP 1.4 features:

• High Bit Rate 3 (HBR3) Bandwidths of 32.4 Gbps supporting the latest in industry standards • High Dynamic Range (HDR) for higher contrast ratio and vivid colors • Multi-Stream Transport (MST) for daisy-chaining multiple monitors • Display Stream Compression 1.2 (DSC) for maximum resolution output • Forward Error Correction to manage data transmission errors • High-Bandwidth Digital Content Protection (HDCP 2.2) for a secure connection between source and display • 32 Uncompressed Digital Audio Channels

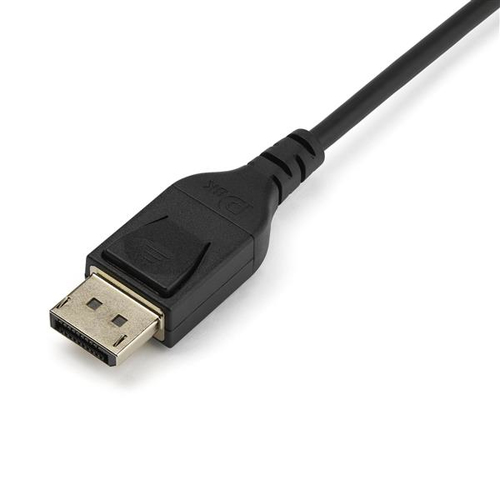

Flexible Cable with Reliable Latched Connectors

The cable has a slim professional grade 34 AWG construction that allows for flexible installation while offering superior reliability for a clean quality installation. Each connector features latches that provide secure connections between your devices.

8K: Enabling Business Continuity

8K has a resolution of 7680 x 4320 and is also known as 4320p and Super Ultra High Definition (SUHD). It is seen in digital signage and other commercial displays that require the highest available resolution. This cable is backward compatible with 4K and 5K displays making it the perfect peripheral to start futureproofing your cabling infrastructure.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

DP14MM2M is backed by a StarTech.com lifetime warranty.

Specifications

BrandSTARTECH
Manufacturer part no.DP14MM2M
Our part no.V934455
EAN0065030880534
CategoryCables & Adapters › VGA & Video Adapters
Weight0.1 kg
Features
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version1.4
Maximum resolution7680 x 4320 pixels
Supported graphics resolutions2560 x 1600 (WQXGA), 3840 x 2160, 7680 x 4320
Maximum refresh rate120 Hz
HDCPYes
Cable length2 m
Connector 1DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Latching connectorsYes
Product colourBlack
Cable shieldingAluminum mylar foil
Jacket materialPolyvinyl chloride (PVC)
AWG wire size34
High Dynamic Range (HDR) supportedYes
Bandwidth32400 MB/s
Plug and PlayYes
HBR3 supportYes
Multi-Stream Transport (MST)Yes
Number of conductors19
Fire-resistance ratingVW-1
Certificates
Compliance certificatesRoHS
CertificationCE
Weight & dimensions
Cable diameter4.5 mm
Weight252 g
Packaging data
Package width199 mm
Package depth178 mm
Package height21 mm
Package weight270 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code84733080
Master (outer) case width412 mm
Master (outer) case length345 mm
Master (outer) case height275 mm
Products per master (outer) case80 pc(s)
