Description

StarTech.com Dual TV Ceiling Mount - Back-to-Back Heavy Duty Hanging Dual Screen Mount with Adjustable Telescopic Pole - Tilt/Swivel/Rotate - VESA Bracket for 32”-75" Displays, 90 kg, 81.3 cm (32"), 190.5 cm (75"), 200 x 200 mm, 600 x 400 mm, 1060 - 1560 mm

Dual Display Mount | Full Motion | For 32" to 75" Displays

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

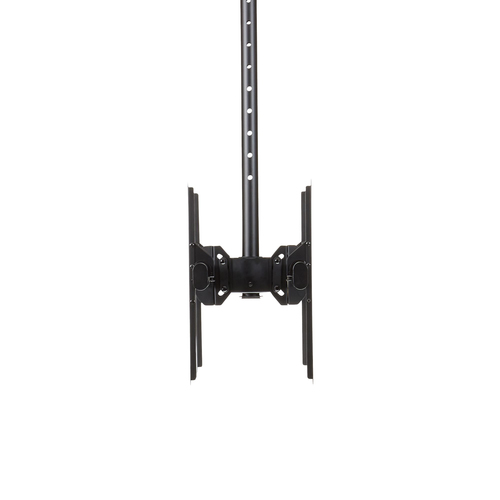

Back-to-Back TV Mount

The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

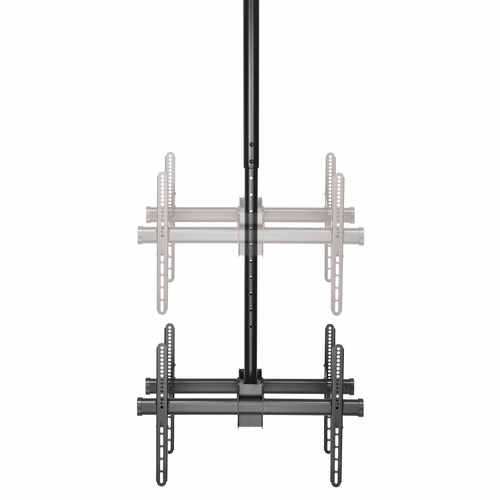

Adjustable Height

With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

Easy Screen Adjustment

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

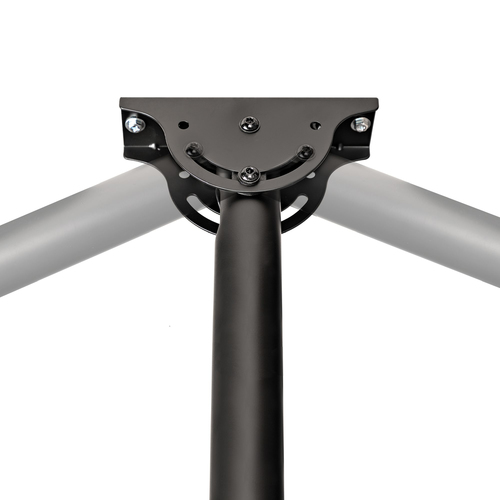

Swivels to Suit Your Ceiling

The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

Simple Setup and Cable Management

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.FPCEILBTB
Our part no.V934480
EAN0065030880671
CategoryMonitors & Displays › Monitor Mounts & Stands
Weight13 kg
Mounting
Maximum weight capacity90 kg
Minimum screen size81.3 cm (32")
Number of displays supported2
Maximum weight capacity (per display)45 kg
Maximum screen size190.5 cm (75")
Mounting typeCeiling
Minimum VESA mount200 x 200 mm
Maximum VESA mount600 x 400 mm
Panel mounting interface200 x 200,300 x 300,400 x 200,400 x 400,600 x 400
Ergonomics
Height adjustmentYes
Height adjustment range1060 - 1560 mm
Tilt angle range-20 - 5°
Swivel angle range-180 - 180°
Angle of rotation360°
AdjustableYes
Design
Product colourBlack
Housing materialSteel
Anti-theft functionNo
Weight & dimensions
Width165 mm
Depth680 mm
Depth (max)68 cm
Height835 mm
Weight9.8 kg
Packaging data
Package width934 mm
Package depth317 mm
Package height153 mm
Package weight10.8 kg
Packaging content
ManualYes
Screws includedYes
Number of screws46
Wrench includedYes
Nuts includedYes
Number of nuts2
Washers includedYes
Number of washers included12
Spacer includedYes
Number of spacers included32
Technical details
Sustainability complianceYes
Compliance certificatesCE, RoHS
Logistics data
Harmonized System (HS) code85299097
Master (outer) case width345 mm
Master (outer) case length960 mm
Master (outer) case height312 mm
Products per master (outer) case2 pc(s)
