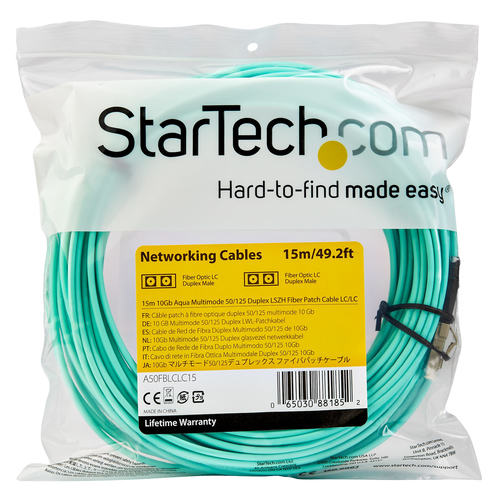

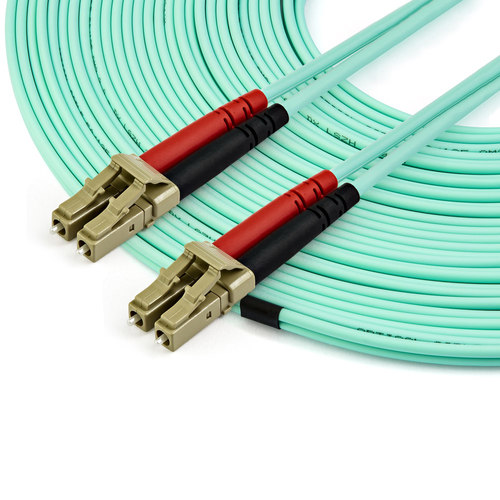

StarTech.com 15m (50ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord, 15 m, OM3, LC, LC

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC15 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.A50FBLCLC15
Our part no.V934531
EAN0065030881852
CategoryCables & Adapters › Specialist Cables
Weight0.2 kg
Features
Cable length15 m
Fibre optic typeOM3

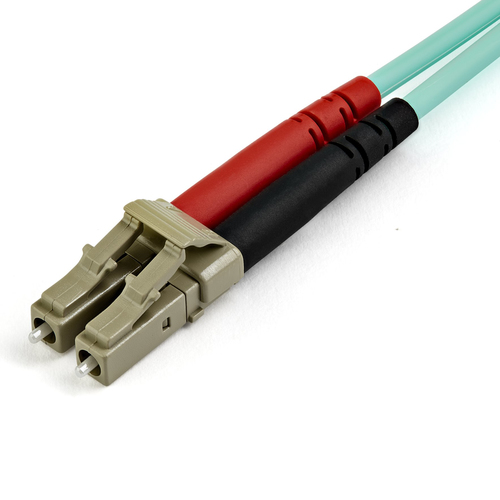

Connector 1LC
Connector 2LC
Connector 1 genderMale
Connector 2 genderMale
Product colourAqua colour
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Wavelengths supported850 nm
Data transfer rate100 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight195 g
Packaging data
Package width196 mm
Package depth173 mm
Package height38 mm
Package weight206 g
Logistics data
Master (outer) case width400 mm
Harmonized System (HS) code85447000
Master (outer) case length400 mm
Master (outer) case height430 mm
Products per master (outer) case56 pc(s)
