Description

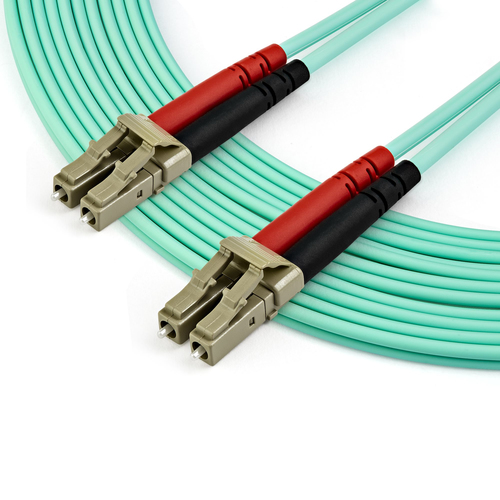

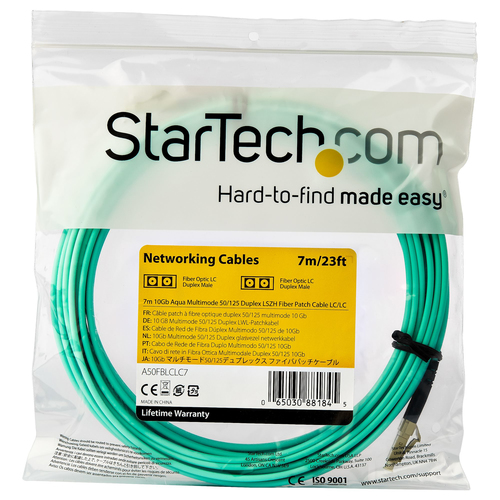

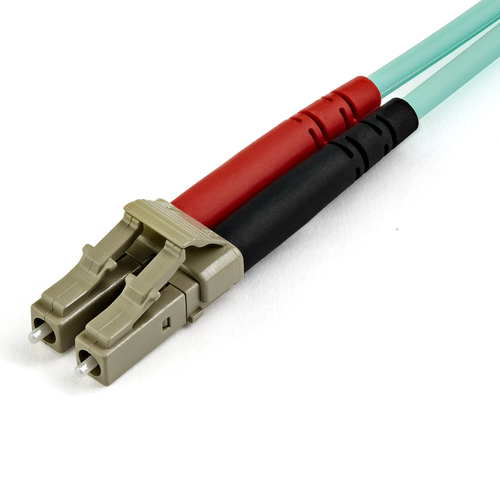

StarTech.com 7m (22ft) LC/UPC to LC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord, 7 m, OM3, LC, LC

LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+

This OM3 LC to LC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection.

Built for Performance

With laser-optimized multimode fiber (LOMMF), the patch cable is ideal for connecting 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. The high-speed connectivity on the aqua fiber-optic cable provides a high-bandwidth solution for your data centers or high-density applications.

Reliable Connection

Each OM3 fiber cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.

High-Quality Construction

Housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, this fiber-optic cable ensures minimal smoke, toxicity and corrosion when exposed to high sources of heat, or in the event of a fire. It's the best choice for a wide range of environments, including industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.

A50FBLCLC7 is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Specifications

BrandSTARTECH
Manufacturer part no.A50FBLCLC7
Our part no.V934532
EAN0065030881845
CategoryCables & Adapters › Specialist Cables
Weight0.1 kg
Features
Cable length7 m
Fibre optic typeOM3
Connector 1LC
Connector 2LC
Connector 1 genderMale
Connector 2 genderMale
Product colourAqua colour
Full duplexYes
Core diameter50 µm
Cladding diameter125 µm
Fiber mode structureMulti-mode
Wavelengths supported850 nm
Data transfer rate100 Gbit/s
Jacket materialLow smoke zero halogen (LSZH)
Sustainability
Doesn't containHalogen
Certificates
Compliance certificatesRoHS, CE
Operational conditions
Operating temperature (T-T)-20 - 60 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Weight96 g
Packaging data
Package width198 mm
Package depth164 mm
Package height28 mm
Package weight106 g
Packaging content
Quantity per pack1 pc(s)
Logistics data
Master (outer) case width406 mm
Harmonized System (HS) code85447000
Master (outer) case length414 mm
Master (outer) case height442 mm
Products per master (outer) case120 pc(s)
