Description

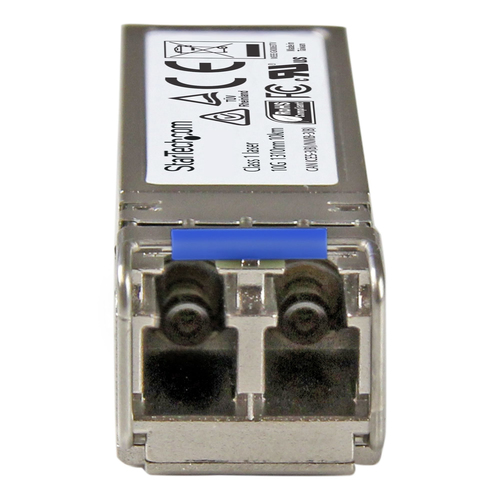

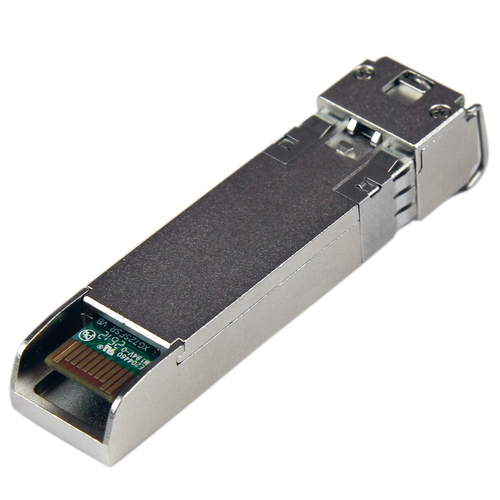

StarTech.com Juniper SFPP-10GE-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM, Fiber optic, 10000 Mbit/s, SFP+, LC, LR, 10000 m

10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

The SFPP10GELRST is a Juniper XBR-000180 compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310nm • Maximum Data Transfer Rate: 10 Gbps • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 10 km (6.2 mi) • MTBF: 38,631,862 hours • Power Consumption: • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Specifications

BrandSTARTECH
Manufacturer part no.SFPP10GELRST
Our part no.V934751
EAN0065030883078
CategoryNetworking › Transceivers & SFPs
Weight0 kg
Performance
SFP transceiver typeFiber optic
Maximum data transfer rate10000 Mbit/s
Interface typeSFP+
Single-mode fiber (SMF) supportedYes
Multi-mode fiber (MMF) supportedNo
Fiber optic connectorLC
SFP transceiver standardLR
Maximum transfer distance10000 m
Wavelength1310 nm
Fiber ethernet cabling technology10GBASE
Duplex systemFull
Digital Diagnostics Monitoring (DDM)Yes
Features
Product colourSilver
Hot-swapYes
Mean time between failures (MTBF)38631862 h
Brand compatibilityJuniper
Compatible productsSFPP-10GE-LR
Power
Power consumption (typical)1.3 W
Certificates
Compliance certificatesRoHS
CertificationCE, FCC, UR, REACH
Weight & dimensions
Width14 mm
Depth65 mm
Height12 mm
Weight72 g
Packaging content
Quantity per pack1 pc(s)
Packaging data
Package width94 mm
Package depth116 mm
Package height32 mm
Logistics data
Master (outer) case width344 mm
Master (outer) case length295 mm
Harmonized System (HS) code85369010
Master (outer) case height255 mm
Products per master (outer) case1 pc(s)
