Description
StarTech.com Juniper RX-70KM-SFP Compatible SFP Module - 1000BASE-ZX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 70km - 1550nm - DDM, Fiber optic, 1000 Mbit/s, SFP, LC, ZX, 70000 m
1000 Mbps (1 Gbps) | Single Mode Fiber | LC | 70 km (43.5 mi) | Lifetime Warranty

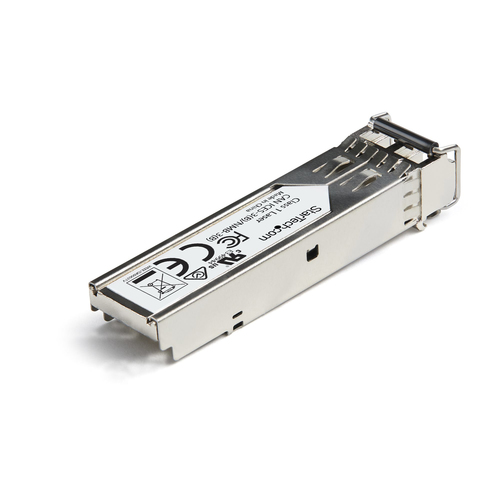

The RX70KMSFPST is a Juniper RX-FXSM-SFP compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-ZX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1550nm • Maximum Data Transfer Rate: 1000 Mbps (1 Gbps) • Type: Single Mode Fiber • Connection Type: LC Connector • Maximum Transfer Distance: 70 km (43.5 mi) • MTBF: 53,972,659 hours • Power Consumption: Low power consumption • Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Brand | STARTECH |
|---|---|
| Manufacturer part no. | RX70KMSFPST |
| Our part no. | V934763 |
| EAN | 0065030883849 |
| Category | Networking › Transceivers & SFPs |
| Weight | 0 kg |
| Performance | |
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |

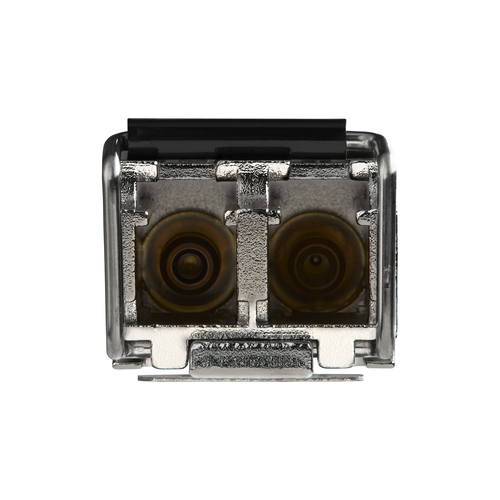

| Fiber optic connector | LC |
| SFP transceiver standard | ZX |
| Maximum transfer distance | 70000 m |
| Wavelength | 1550 nm |
| Fiber ethernet cabling technology | 1000BASE |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 53972659 h |
| Brand compatibility | Juniper |
| Compatible products | RX-70KM-SFP |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, FCC, UR, REACH |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 65 mm |
| Height | 12 mm |
| Weight | 72 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Packaging data | |
| Package width | 207 mm |
| Package depth | 230 mm |
| Package height | 15 mm |
| Package weight | 80 g |
| Logistics data | |
| Master (outer) case width | 344 mm |
| Master (outer) case length | 295 mm |
| Harmonized System (HS) code | 85369010 |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 1 pc(s) |
