StarTech.com VGA to RCA and S-Video Converter - USB Power, Active video converter, Black, CE, FCC, REACH, 1920 x 1080 pixels, 640 x 480,1920 x 1080 pixels, 60 Hz

Computer to TV Converter | 1080p to 480i Scaler |Composite & S-Video | 2-Year Warranty

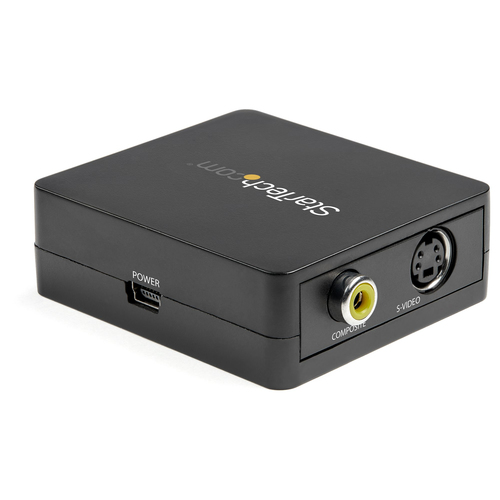

This VGA to RCA/S-Video converter box provides a simple way to convert and scale a 1080p VGA video input signal to a 480i composite (CVBS) or S-Video output signal. Perfect for use with legacy projectors or TV sets.

Hassle-Free Setup and Easy to Use

Equipped with a NTSC/PAL toggle switch and a scan button for simple configuration and selection of your video output settings, this compact VGA to Composite and S-Video adapter installs quickly and easily, for a true plug-and-play experience.

Save on Upgrade Costs

By using this VGA to AV adapter you can connect a PCs VGA connector to legacy TVs and projectors, ultimately saving the costs of upgrading your equipment. It's ideal for boardroom settings, medical imaging and watching videos on your S-Video or Composite display.

Crystal-Clear Picture Quality

The PC to television converter features an integrated video scaler circuit that dynamically converts VGA video input signals with resolutions up to 1920x1200 @ 60Hz. To ensure compatibility with your display or projector the computer to TV converter outputs high quality 640 x 480 video, the highest supported by S-Video or Composite.

VGA2VID2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

Specifications

BrandSTARTECH
Manufacturer part no.VGA2VID2
Our part no.V934873
EAN0065030882590
CategoryCables & Adapters › VGA & Video Adapters
Weight0.1 kg
Features
Converter typeActive video converter
Product colourBlack
CertificationCE, FCC, REACH
Video
Maximum video resolution1920 x 1080 pixels
Video resolutions640 x 480,1920 x 1080 pixels
Maximum refresh rate60 Hz
Ports & interfaces

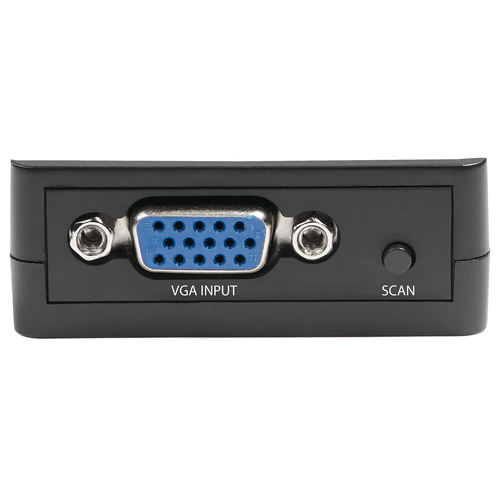

Host interfaceVGA (D-Sub)

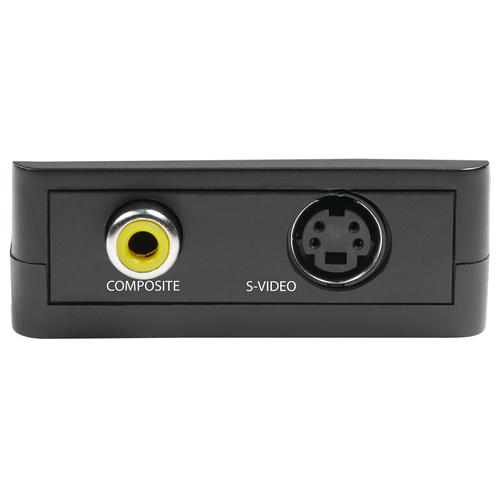

Output interfaceComposite/S-Video
Power
USB poweredYes
Power consumption (typical)2.5 W
Technical details
Compliance certificatesRoHS
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-10 - 80 °C
Operating relative humidity (H-H)5 - 90%
Weight & dimensions
Width54 mm
Depth60 mm
Height20 mm
Weight46 g
Packaging data
Cables includedUSB
Quick installation guideYes
Quantity1
Package width133 mm
Package depth105 mm
Package height24 mm
Package weight162 g
Logistics data
Harmonized System (HS) code85176990
Master (outer) case width540 mm
Master (outer) case length568 mm
Master (outer) case height351 mm
Products per master (outer) case100 pc(s)
