Description

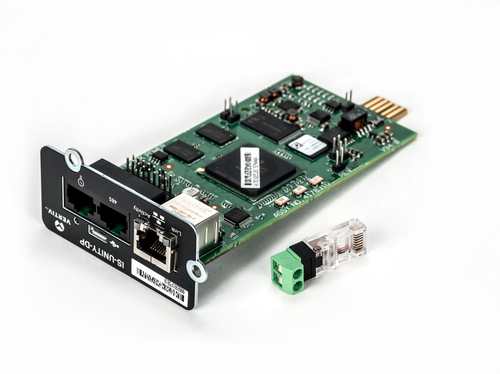

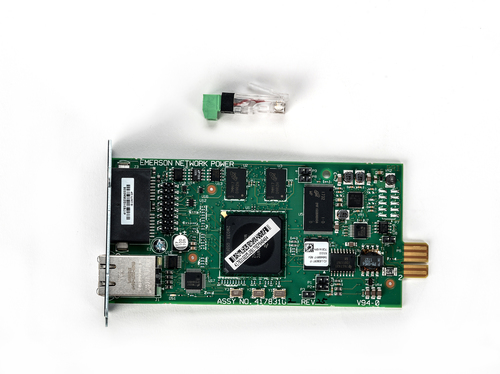

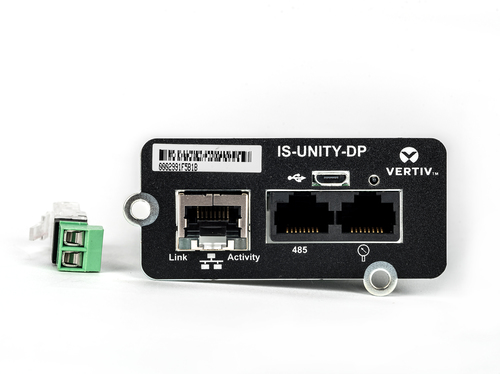

Vertiv Liebert IS-UNITY-DP, Internal, Wired, Ethernet, 100 Mbit/s, Black, Green
Provides Web access, environmental sensor data, alarm notifications, and third-party interface protocols for Vertiv equipment, and integrates with LIFE Services, Trellis, and Liebert Nform. The IS-UNITY-DP (dual protocol) card allows customers to enable two of the supported third-party protocols (SNMP, BACnet, Modbus, and YDN23) for interfacing with building management or data center management system applications.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | IS-UNITY-DP |
| Our part no. | W892432 |
| EAN | 0813829014130 |
| Category | Networking › Network Cards & Line Cards |
| Weight | 0.1 kg |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
| Network | |
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Security algorithms | SNMP |
| Web-based management | Yes |
| Supported network protocols | HTTP/HTTPS |
| Design | |
| Product colour | Black, Green |
| Internal | Yes |
| Power | |
| Output voltage | 7-12 V |
| System requirements | |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Width | 75.5 mm |
| Depth | 132 mm |
| Height | 37 mm |
| Weight | 20 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
