Description
Vertiv Avocent HMX5200R KVM switch Rack mounting Blue, 1920 x 1200 pixels, Ethernet LAN, Full HD, Rack mounting, 1U, Blue
Avocent HMX 5200R High Performance KVM System\nThe Avocent HMX 5000 Series is a high performance KVM (Keyboard, Video and Mouse) extender that forms part of the matrix Solution. This enables you to locate your critical computing hardware in a secure and temperature controlled environment away from the user work station, while maintaining a pixel perfect desktop experience.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | HMX5200R-202 |
| Our part no. | W893565 |
| EAN | 0636430077727 |
| Category | Networking › KVM & Extenders |
| Weight | 0 kg |
| Ports & interfaces | |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| DVI-D ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB connector type | USB Type-A |
| Serial port type | DE-9 (DB-9) |
| Serial ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 1 |
| Number of microphone inputs | 1 |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1200 pixels |
| Plug and Play | Yes |
| Number of users | 16 user(s) |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Blue |
| Housing material | Metal |
| LED indicators | Yes |
| Certification | CE, FCC, UL |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | AC |
| Input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 0.8 A |
| Compatible power plug types | EU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width | 198 mm |
| Depth | 150 mm |
| Height | 44 mm |
| Weight | 1.1 kg |

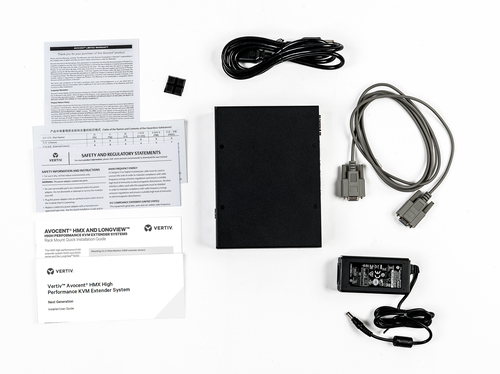

| Packaging content | |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
