Description

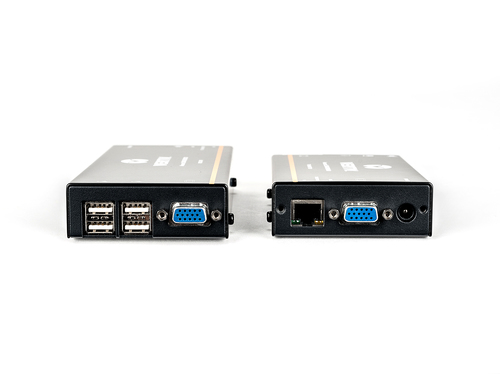

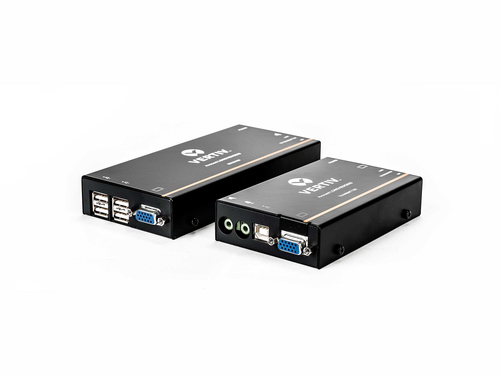

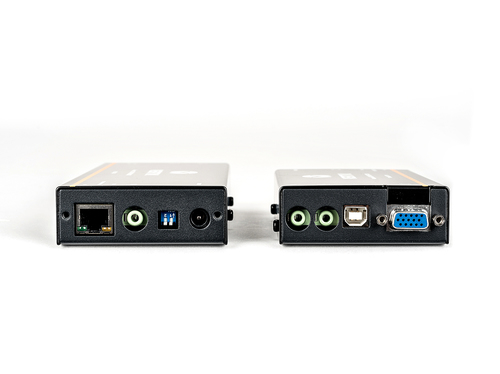

Vertiv Avocent LV3010P-202 KVM extender Transmitter & receiver, Transmitter & receiver, Wired, 300 m, Cat5, Cat5e, Cat6, Cat7, 1920 x 1200 pixels, Blue
Avocent LV 3010P KVM Extender\nAvocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.\nThe LV3000 next generation USB, video and audio extenders delivers sharp, bright and high resolution video images and high quality audio for single and multi screen desktops at distances up to 300 m (1000 ft) over a single or multiple CATx cables. The LV3000 series has been designed to provide industry-leading video clarity, compatibility and high rack densities.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | LV3010P-202 |
| Our part no. | W893703 |
| EAN | 0636430078182 |
| Category | Networking › Other (0407) |
| Weight | 0 kg |
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 300 m |
| Cable types supported | Cat5, Cat5e, Cat6, Cat7 |
| Rack mounting | No |
| Maximum analog resolution | 1920 x 1200 pixels |
| Audio support | Yes |
| Product colour | Blue |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC class A, UL |
| Transmitter | |
| Transmitter video port type | VGA |
| Transmitter local video port | Yes |
| Transmitter local video port type | VGA |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | VGA |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 100 - 240 A |
| AC adapter output voltage | 5 V |
| Power consumption (transmitter) (max) | 12 W |
| Power consumption (receiver) (max) | 12 W |
| Weight & dimensions | |
| Transmitter width | 16.2 cm |
| Transmitter depth | 7.5 cm |
| Transmitter height | 2.6 cm |
| Transmitter weight | 430 g |
| Receiver width | 12.2 cm |
| Receiver depth | 7.5 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 350 g |
| Packaging content | |
| AC adapter included | Yes |
| Cables included | AC, Audio (3.5mm), USB, VGA |
| Quick installation guide | Yes |
| Mounting bracket(s) included | No |
| Included power plug types | EU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Maximum resolution | 1920 x 1200 pixels |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
