Description
Vertiv Avocent LV4010P-202 KVM extender Transmitter & receiver, Transmitter & receiver, Wired, 50 m, Cat5e, Cat6a, Cat7, 1920 x 1200 pixels, Blue
Avocent LV 4010P KVM Extender\nAvocent LongView extension solutions enable you to increase the distance between the user and the target system. Extension solutions are ideal for broadcast, IT, industrial, transportation, emergency management and defense/military applications.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | LV4010P-202 |
| Our part no. | W893733 |
| EAN | 0636430078403 |
| Category | Cables & Adapters › Display Cables |
| Weight | 0 kg |
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 50 m |
| Cable types supported | Cat5e, Cat6a, Cat7 |
| Rack mounting | No |
| Maximum digital resolution | 1920 x 1200 pixels |
| Audio support | Yes |
| Product colour | Blue |
| Material | Metal |
| Easy to install | Yes |
| Plug and Play | Yes |
| Certification | CE, FCC, UL |
| Transmitter | |
| Transmitter video port type | DVI-D |
| Transmitter local video port | Yes |
| Transmitter local video port type | DVI-D |
| Number of displays supported | 1 |
| Transmitter local keyboard/mouse port type | USB |
| RJ-45 ports quantity (transmitter) | 1 |
| Receiver | |
| Receiver local video port type | DVI-D |
| Receiver local keyboard/mouse port type | USB |
| RJ-45 ports quantity (receiver) | 1 |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 3 V |
| AC adapter output current | 0.4 A |
| Power consumption (receiver) (max) | 12.5 W |
| Weight & dimensions | |
| Transmitter width | 12 cm |
| Transmitter depth | 7.5 cm |
| Transmitter height | 2.6 cm |
| Transmitter weight | 320 g |
| Receiver width | 12 cm |
| Receiver depth | 7.5 cm |
| Receiver height | 2.6 cm |
| Receiver weight | 320 g |

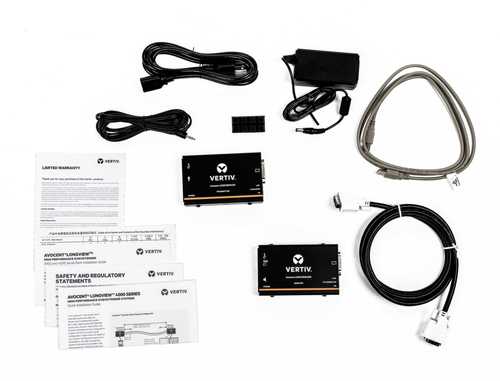

| Packaging content | |
| AC adapter included | Yes |
| Cables included | AC, Audio (3.5mm), DVI, USB |
| Quick installation guide | Yes |
| Mounting bracket(s) included | No |
| Included power plug types | EU |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Maximum resolution | 1920 x 1200 pixels |
| Weight | 320 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
