Description

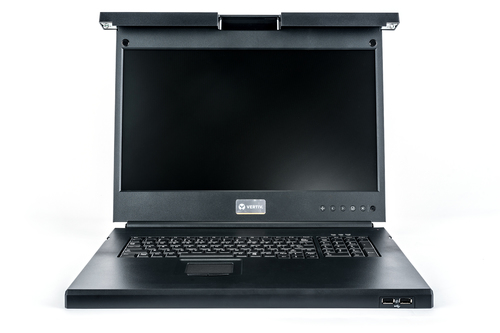

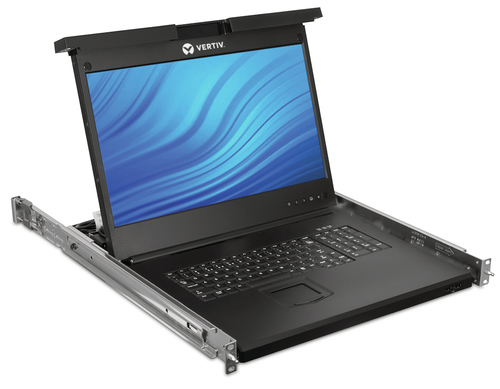

Vertiv Avocent LCD Local Rack Access Console, 16P KVM, 16 CABLES, USB KB-UK ENG, 48.3 cm (19"), 1366 x 768 pixels, LED LCD, 250 cd/m², 1000:1, 41 cm
Avocent LCD Local Rack Access Console The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system monitoring convenient and less time-consuming.
- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio. - Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space - KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches - User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages. - Data Center Local Access: Complete entry point to local servers when needed. - Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | LRA185KMM16D-201 |
| Our part no. | W894281 |
| EAN | 0636430084657 |
| Category | Networking › KVM & Extenders |
| Weight | 20.8 kg |
| Display | |
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1366 x 768 pixels |
| Display | LED LCD |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Viewable size, horizontal | 41 cm |
| Viewable size, vertical | 23 cm |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Viewable size diagonal | 47 cm |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 300 x 300 mm |
| Aspect ratio | 1:1, 16:9 |
| Display type | TFT |
| Number of OSD languages | 7 |
| Technical details | |
| Material | Plastic, Steel |
| Plug and Play | Yes |
| Height (in Rack Units) | 1 |
| Size (imperial) | 48.3 cm (19") |
| Product colour | Black |
| Operating relative humidity (H-H) | 10 - 80% |
| Built-in KVM switch | Yes |
| KVM switch ports quantity | 16 |
| Maximum resolution | 1600 x 1200 pixels |
| Operating temperature (T-T) | 0 - 50 °F |
| Relative humidity | 10 - 80% |
| Rack mounting | Yes |
| Display connection | Yes |
| Number of computers controlled | 16 |
| On/off switch | Yes |
| Buttons | Auto, Menu |
| LED indicators | Yes |
| Rack capacity | 1U |
| Ports & interfaces | |
| Interface | USB |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| Keyboard | |
| Keyboard number of keys | 103 |
| Built-in touchpad | Yes |
| Keyboard language | English |
| Keyboard layout | QWERTY |
| Certificates | |
| Certification | UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC\nFCC Class A |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 17 W |
| Power consumption (standby) | 0.5 W |
| AC adapter input voltage | 90 - 264 V |
| AC adapter output voltage | 12 V |
| AC adapter frequency | 50 - 60 Hz |
| Output current | 3.3 A |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Weight & dimensions | |
| Width | 482.6 mm |
| Height | 44.5 mm |
| Depth | 533.4 mm |
| Weight | 9.98 kg |
| Mounting depth (min) | 70.6 cm |
| Mounting depth (max) | 90.9 cm |
| Packaging data | |
| Package weight | 15.4 kg |
| Package dimensions (WxDxH) | 749.3 x 584.2 x 216 mm |
| Packaging content | |
| Cables included | KVM |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Package type | Box |
