Description
Vertiv Geist rPDU, basic, 0U, input C20 230V 16A, outputs (20)C13 | (4)C19, Basic, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler

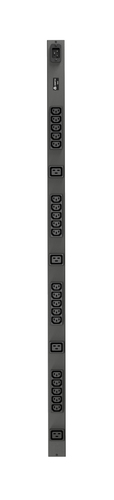

The Vertiv Geist Basic Rack PDU VP7552 is a 16A, 230V, 0U vertical rack power distribution unit (PDU). It has 20 IEC C13, 4 IEC C19 outlets, and an IEC 60320 C20 power inlet. Vertiv Geist Basic Rack PDUs are UL-listed and are not batch-tested. The RoHS-compliant rPDUs undergo rigorous individual tests for reliability and functionality before shipping. The unit comes with a three-year warranty that can be extended to five-years if registered within 120 days of purchase.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | VP7552 |
| Our part no. | W894617 |
| Category | Power & UPS › PDUs |
| Weight | 5 kg |
| Design | |
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 24 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Output connections | 20 x C13 & 4 x C19 |
| Features | |
| LED indicators | No |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 Hz |
| Maximum current | 16 A |
| Load capacity | 3600 VA |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, RoHS, CB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 1207 mm |
| Depth | 51 mm |
| Height | 51 mm |
| Weight | 3.1 kg |
| Packaging data | |
| Package weight | 3.63 kg |
| Package width | 1270 mm |
| Package depth | 127 mm |
| Package height | 77 mm |
