Description

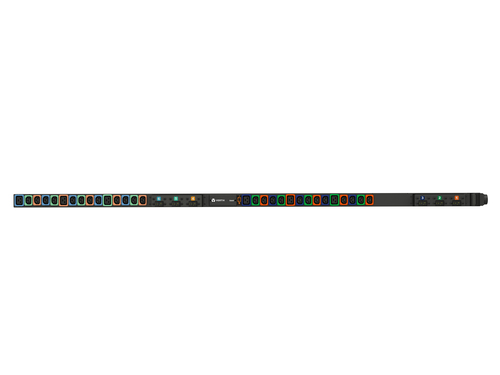

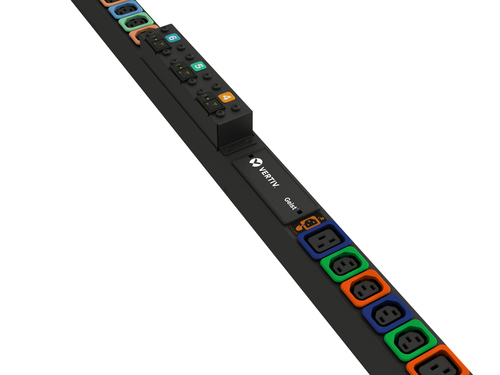

Vertiv U1073L, Basic, 0U, Vertical, Black, 30 AC outlet(s), C13 coupler, C19 coupler
The Vertiv Geist UPDU is a versatile rack power distribution unit featuring a universal input and detachable Facility Side Cable (FSC - sold separately). The UPDU supports common AC power configurations ranging from 16A-60A and 120V-415V. Available in basic to intelligent models featuring advanced remote power monitoring, environmental monitoring, and optional outlet level switching. The UPDU simplifies critical IT infrastructure deployments by allowing a single model to be installed around the world.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | U1073L |
| Our part no. | W895784 |
| EAN | 4061471339132 |
| Category | Power & UPS › PDUs |
| Weight | 0 kg |
| Design | |
| PDU types | Basic |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| On/off switch | Yes |
| Ports & interfaces | |
| AC outlets quantity | 30 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Features | |
| LED indicators | No |
| Power | |
| Nominal input voltage | 230/400 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Load capacity | 22000 VA |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, UL, CB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 1778 mm |
| Depth | 51 mm |
| Height | 58 mm |
| Weight | 8.62 kg |
