Description

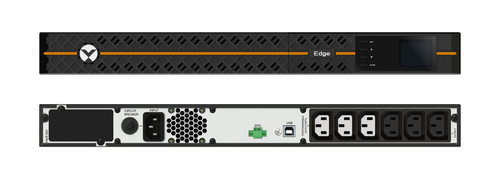

Vertiv Liebert Edge Uninterruptible Power Supply (UPS) - 1000VA 900W 230V 1U Line Interactive AVR Rack Mount | 0.9 PF, Line-Interactive, 1 kVA, 900 W, Pure sine, 166 V, 278 V
The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With compact 1U rack format, this 1000VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen.
Specifications
| Brand | VERTIV |
|---|---|
| Manufacturer part no. | EDGE-1000IRM1U |
| Our part no. | W895817 |
| EAN | 0767041031355 |
| Category | Power & UPS › UPS |
| Weight | 22.2 kg |
| Features | |
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 166 V |
| Input operation voltage (max) | 278 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 624 J |
| Efficiency | 97% |

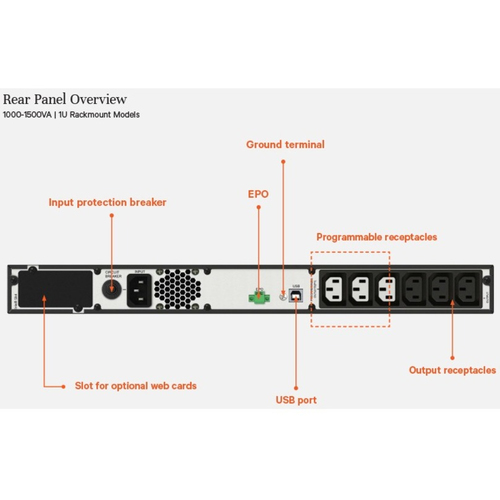

| Ports & interfaces | |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
| Battery recharge time | 3 h |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 1U |
| Cable length | 3 m |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE, CB Report, EAC, RCM, UKCA |
| Safety regulation & standards | |
| Safety | IEC/EN62040-1 |
| Weight & dimensions | |
| Width | 438 mm |
| Depth | 480 mm |
| Height | 43 mm |
| Weight | 16 kg |
| Packaging data | |
| Package width | 570 mm |
| Package depth | 700 mm |
| Package height | 200 mm |
| Package weight | 23 kg |
| Logistics data | |
| Shipping (inner) case width | 57 cm |
| Shipping (inner) case length | 70 cm |
| Shipping (inner) case height | 20 cm |
| Shipping (inner) case gross weight | 23.4 kg |
| Country of origin | China |
