Description

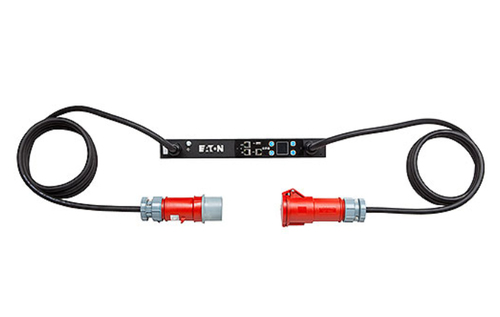

Eaton EILB15, Metered, 0U, Three-phase, Rackmount, Vertical, Black
New ePDU G3 In-Line Metered Input models upgrade existing basic installation to include, including ±1% billing grade accuracy, an advanced LCD pixel display, a hot-swap meter and the ability to daisy chain four ePDUs to share the same network connection and IP address.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | EILB15 |
| Our part no. | X770428 |
| Category | Power & UPS › UPS Cables & Accessories |
| Weight | 0 kg |
| Design | |
| PDU types | Metered |
| Type | Three-phase |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| Cable colour | Black |
| Display | LCD |
| Ports & interfaces | |
| AC outlets quantity | 1 AC outlet(s) |
| Power plug | IEC 60309 |
| AC outlet types | IEC 60309 |
| Ethernet LAN (RJ-45) ports | 1 |
| Output connections | 1 x IEC 309 |
| Features | |
| LED indicators | Yes |
| Cable length | 3 m |
| Management features | |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Power | |
| Nominal input voltage | 400 V |
| AC input frequency | 50 Hz |
| Maximum current | 32 A |
| Nominal output voltage | 230 V |
| Maximum input current per phase | 32 A |
| Maximum power | 22000 W |
| Certificates | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 52 mm |
| Depth | 443 mm |
| Height | 53 mm |
| Weight | 4.98 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Packaging data | |
| Package weight | 6 kg |
