Description

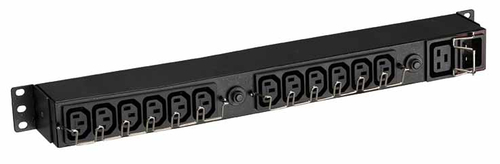

Eaton EFLX12I, Basic, 1U, Single-phase, Rackmount, Horizontal/Vertical, Black
These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | EFLX12I |
| Our part no. | X770581 |
| EAN | 3553340684272 |
| Category | Power & UPS › UPS Cables & Accessories |
| Weight | 1.9 kg |
| Design | |
| PDU types | Basic |
| Type | Single-phase |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Cable colour | Black |
| Ports & interfaces | |
| AC outlets quantity | 13 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Output connections | 12 x C13 & 1 x C19 |
| Power | |
| Nominal input voltage | 230 V |
| AC input frequency | 50 - 60 Hz |
| Maximum current | 13 A |
| Nominal output voltage | 230 V |
| Load capacity | 3000 VA |
| Maximum input current per phase | 13 A |
| Maximum power | 3000 W |
| Certificates | |
| Compliance certificates | RoHS |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
| Width | 439 mm |
| Depth | 58.5 mm |
| Height | 43.4 mm |
| Weight | 1.7 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging content | |
| Rack mount kit | Yes |
| Packaging data | |
| Package weight | 9.5 kg |
| Package width | 180 mm |
| Package depth | 448 mm |
| Package height | 58 mm |
