Description

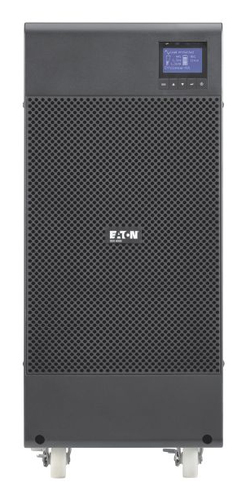

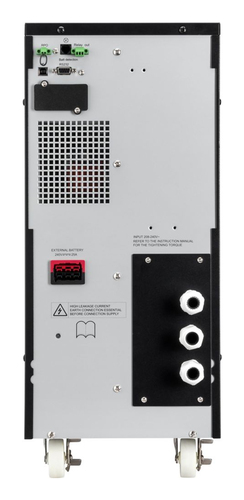

Eaton 9SX5KI, Double-conversion (Online), 5 kVA, 4500 W, Sine, 176 V, 276 V
Eaton 9SX UPS, 5000 VA, 4500 W, Input: Hardwired, Tower.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 9SX5KI |
| Our part no. | X770740 |
| Category | Power & UPS › UPS |
| Weight | 0 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 5 kVA |
| Output power | 4500 W |
| Waveform | Sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 94.2% |
| Input power factor | 99 |
| Output power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Noise level | 46 dB |
| Auto power off | Yes |
| Ports & interfaces | |
| AC outlet types | Hardwire |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Remote Power Off (RPO)/Remote On-Off (ROO) connector | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 7 Ah |
| Battery voltage | 12 V |
| Hot-swap battery | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Compliance certificates | CE |
| Certification | IEC/EN 62040-1, IEC/EN 62040-2, CE, EAC |
| Packaging content | |
| Cables included | Serial, USB cable |
| Quick installation guide | Yes |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 542 mm |
| Height | 575 mm |
| Weight | 65.5 kg |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
