Description

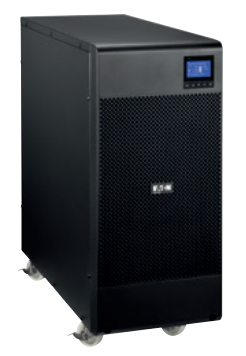

Eaton 9SX 6 kVA, Double-conversion (Online), 6 kVA, 5400 W, 120 V, 276 V, 40/70 Hz
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
Specifications
| Brand | EATON |
|---|---|
| Manufacturer part no. | 9SX6KI |
| Our part no. | X770741 |
| EAN | 0743172091017 |
| Category | Power & UPS › UPS |
| Weight | 80.2 kg |
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 5400 W |
| Input operation voltage (min) | 120 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output voltage regulation | 1% |
| Maximum current | 90 A |
| Efficiency | 98% |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level | 46 dB |
| Ports & interfaces | |
| AC outlet types | Terminal |
| Power plug | Terminal |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Battery | |
| Typical backup time at half load | 15 min |
| Automatic battery test | Yes |
| Design | |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width | 545 mm |
| Depth | 244 mm |
| Height | 542 mm |
| Weight | 65.5 kg |
